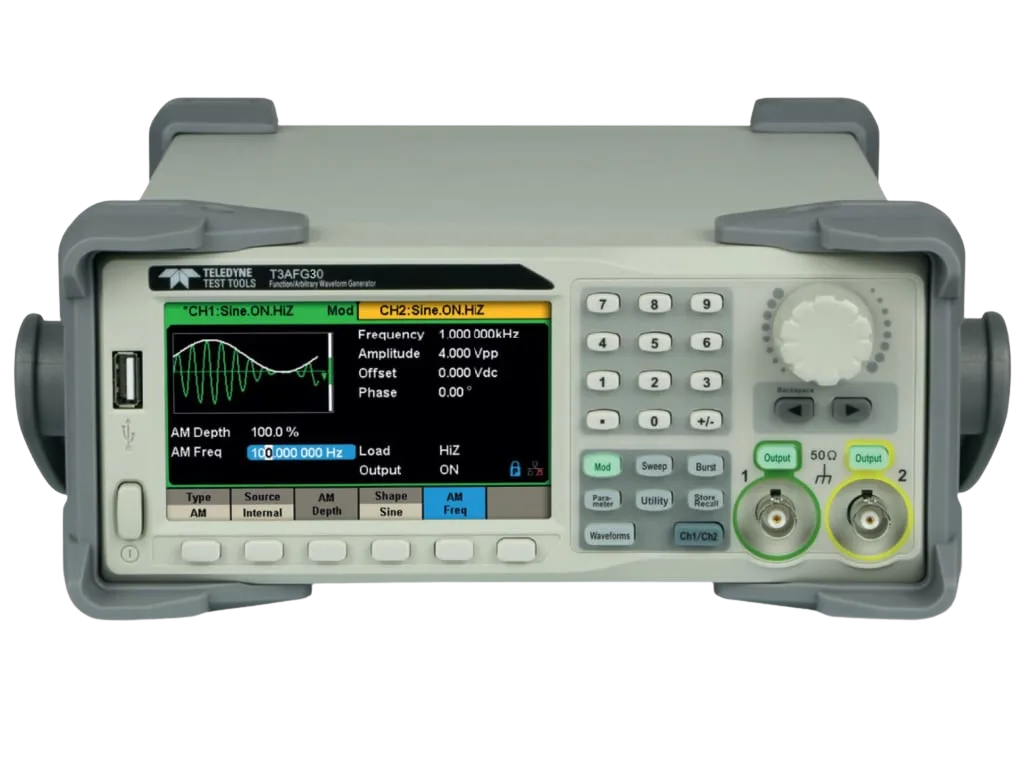

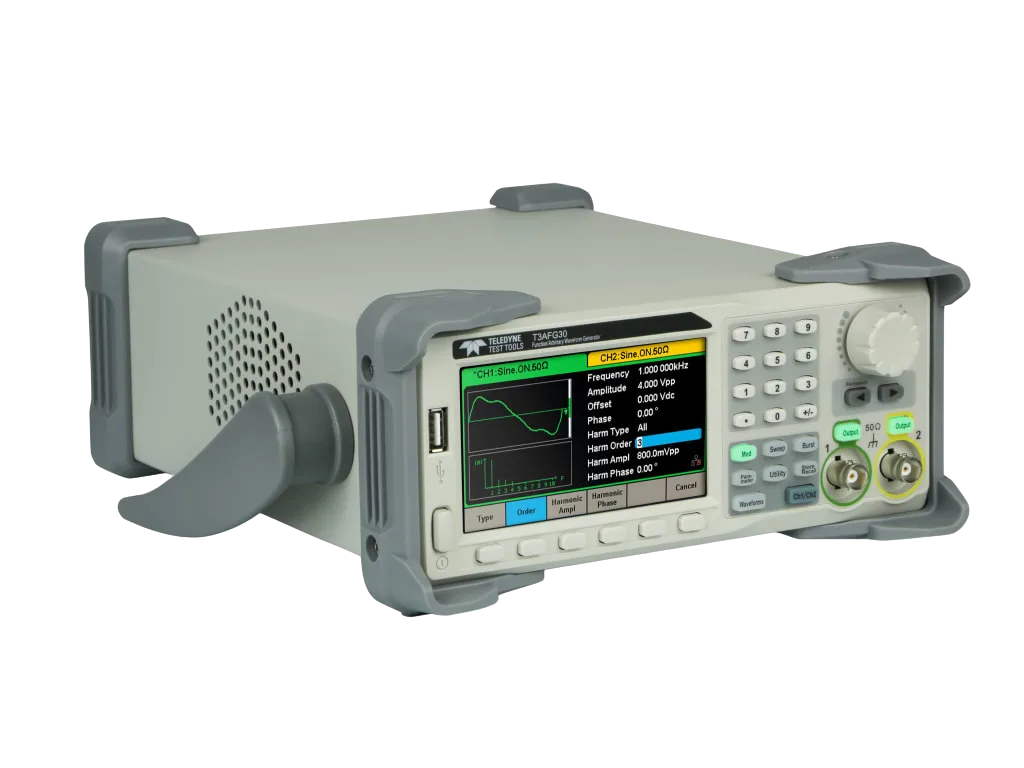

T3AFG30
30 MHz, 150 MS/s,16 kpts, 2 Channel, 20 Vpp Function/Arbitrary Waveform Generator
Article no.
T3AFG30
- Channels
- 2
- Vertical Resolution
- 14 Bits
- Frequency
- 30 MHz
- Amplitude
- 10 V
CHF 1'156.67
incl. 8.1% VAT · CHF 1'070.00 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 2 channels
- 14 Bits vertical resolution
- 30 MHz frequency
- 10 V amplitude
- Sweep
The Teledyne Lecroy T3AFG30 is a function/arbitrary waveform generator with a maximum frequency of 30 MHz and a sampling rate of 150 MS/s. It features 16 kpts of memory depth, allowing for detailed waveform generation. This device supports two channels and offers an amplitude of 10 V peak-to-peak. It includes sweep and burst capabilities, enhancing its versatility for various signal generation tasks. The minimum transition time is 16.8 ns, and the minimum pulse width is 32.6 ns, providing precise control over waveform timing. The memory capacity is 0.016 MPts, supporting complex waveform storage and playback. This generator is designed to meet the needs of applications requiring accurate and flexible signal output.
Technical data
Specifications
11- Channels
- 2
- Vertical Resolution
- 14 Bits
- Frequency
- 30 MHz
- Amplitude
- 10 V
- Sweep
- Yes
- Burst
- Yes
- Sampling Rate
- 150 MS/s
- Memory
- 0.016 MPts
- Transition time min
- 16.8 ns
- Pulse Width min
- 32.6 ns
- Imax AC
