SHN920A
30 kHz ~ 20 GHz, 2 ports, 110 dB (typ.) dynamic range, -45 ~ +10 dBm output setting range, 8.4'' touch screen
Article no.
SHN920A
- Frequency Max
- 20000 MHz
- Frequency min
- 30000 Hz
- Dynamic Range
- 100 dB
- Ports
- 2
CHF 18'765.32
incl. 8.1% VAT · CHF 17'359.22 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 20000 MHz frequency max
- 30000 Hz frequency min
- 100 dB dynamic range
- 2 ports
- Handheld

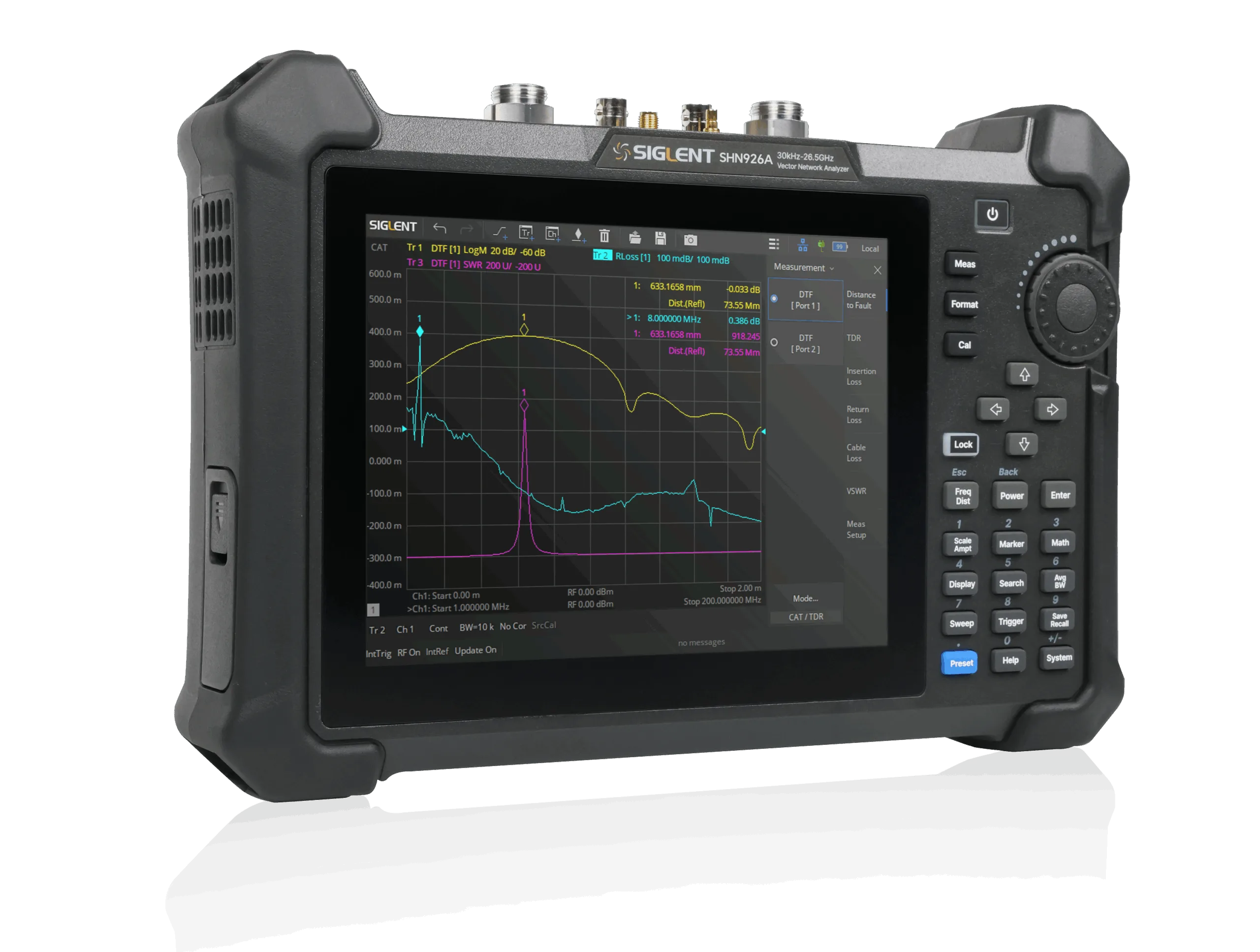

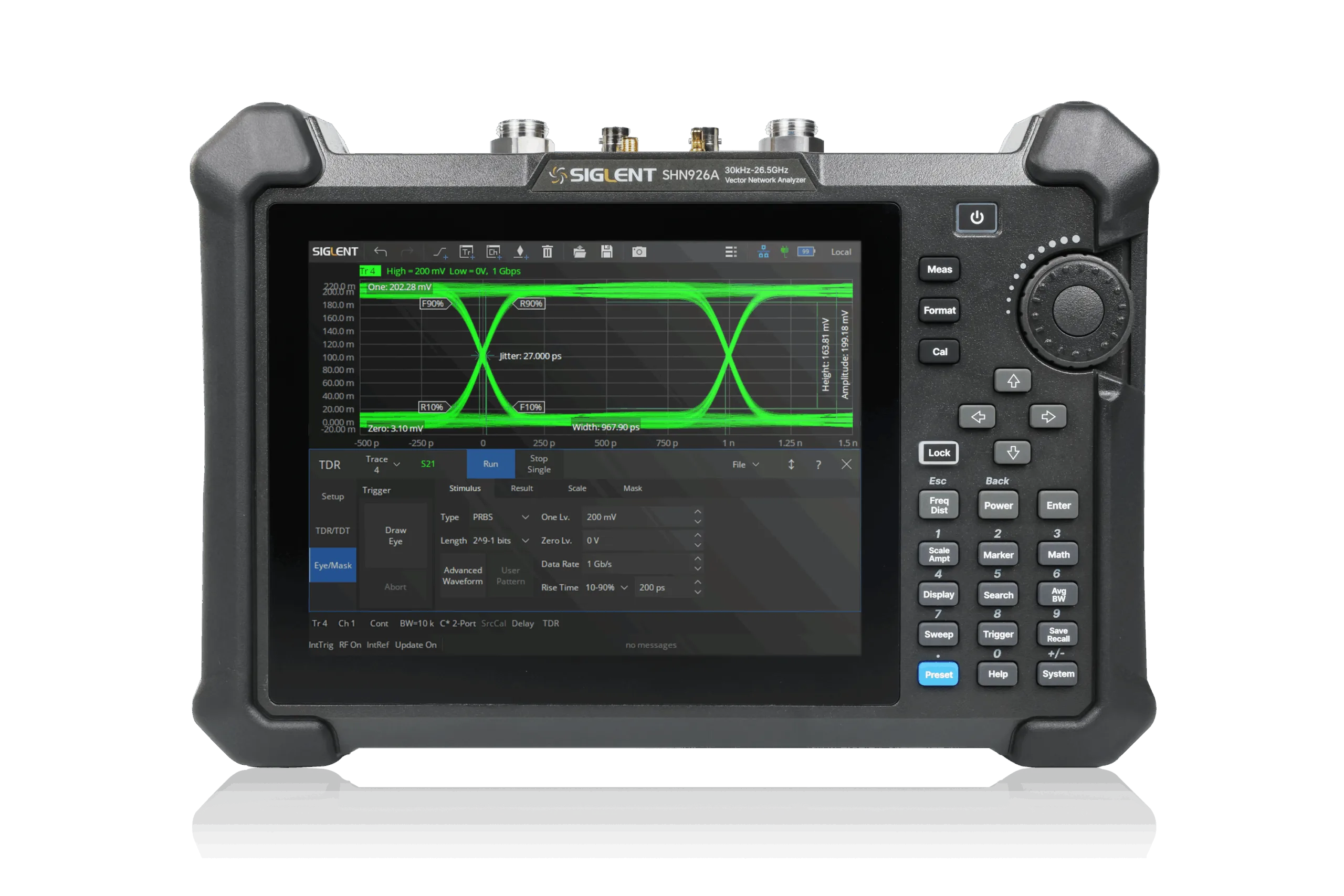

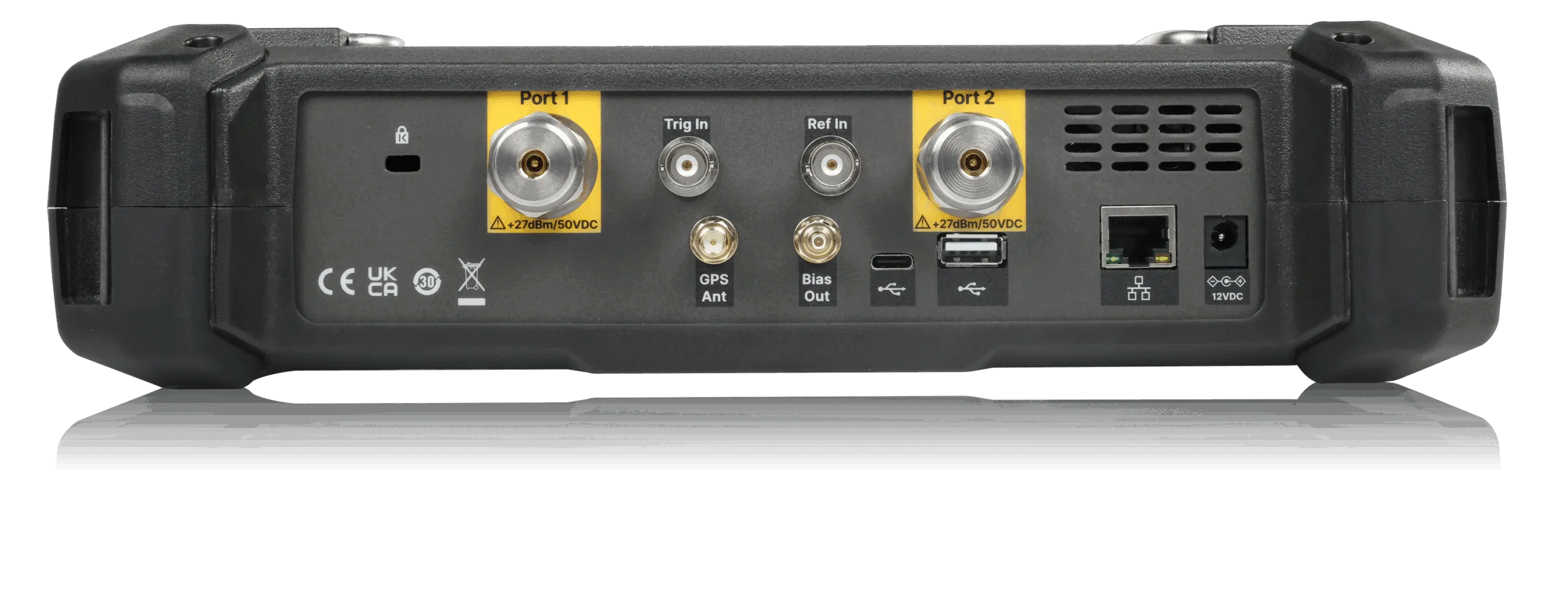

The SHN920A by Siglent operates within a frequency range of 30 kHz to 20 GHz, featuring two ports for versatile connectivity. It offers a typical dynamic range of 110 dB, allowing for precise signal measurement across a wide spectrum. The output setting range spans from -45 dBm to +10 dBm, providing flexibility in signal output levels. This model is equipped with an 8.4-inch touch screen, enhancing user interaction and control. The maximum frequency capability reaches up to 20,000 MHz, supporting high-frequency applications. With its dual-port design and extensive dynamic range, the SHN920A is suitable for various testing and measurement tasks requiring detailed signal analysis.

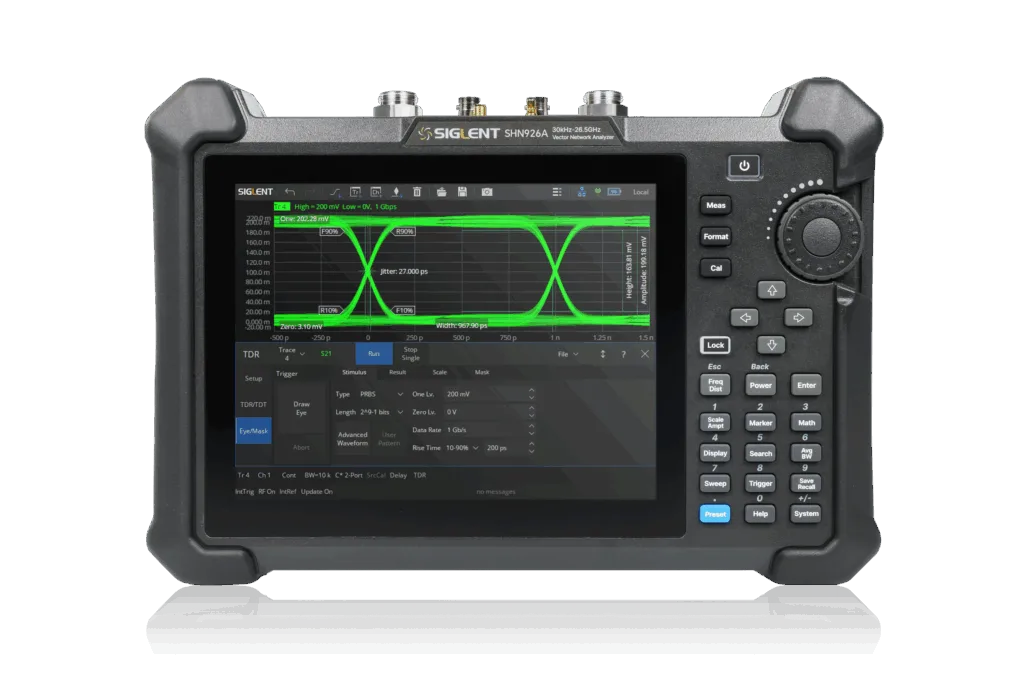

Video
SHN920A
Technical data
Specifications
5- Frequency Max
- 20000 MHz
- Frequency min
- 30000 Hz
- Dynamic Range
- 100 dB
- Ports
- 2
- Handheld
- Yes
Presentation
Product presentation
PDFDocuments
