SSA3021X

9KHz-2.1GHz, Phase Noise

Article no. SSA3021X

Frequency Max: 2100 MHz
Frequency min: 9000 Hz
Handheld: No
Analysis Bandwidth: 1 MHz

CHF 1'363.32

incl. 8.1% VAT · CHF 1'261.17 excl. VAT

B2B prices after login

Calibration & repair at our lab in Biel/Bienne
Expert advice: +41 (0)31 312 48 48

Overview

Description

2100 MHz frequency max
9000 Hz frequency min
1 MHz analysis bandwidth
-161 dBm/Hz danl

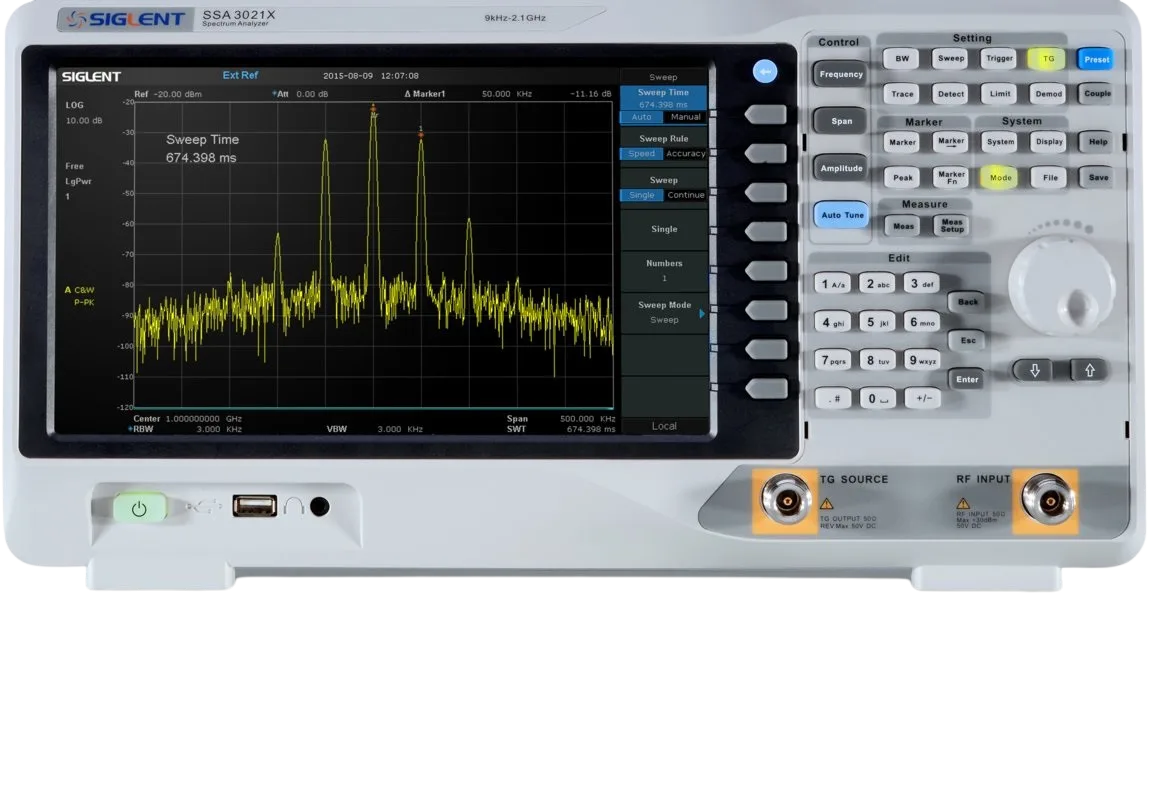

The Siglent SSA3021X operates over a frequency range from 9 kHz to 2.1 GHz, providing a versatile spectrum analysis capability. It features a phase noise level of less than -98 dBc/Hz, ensuring precise signal measurement. The resolution bandwidth (RBW) can be adjusted between 10 Hz and 1 MHz, allowing for detailed frequency analysis. The device achieves a minimum displayed average noise level (DANL) of -161 dBm/Hz, which supports the detection of very low-level signals. Its total amplitude accuracy is maintained at less than 0.7 dB, contributing to reliable amplitude measurements. The SSA3021X is equipped with a 10.1-inch WVGA display with a resolution of 1024 by 600 pixels, providing clear visualization of the spectrum data. It is designed as a non-handheld instrument and includes an analysis bandwidth of 1 MHz. The maximum frequency capability is 2.1 GHz, while the minimum frequency is 9 kHz, covering a broad range of signal frequencies for various applications.

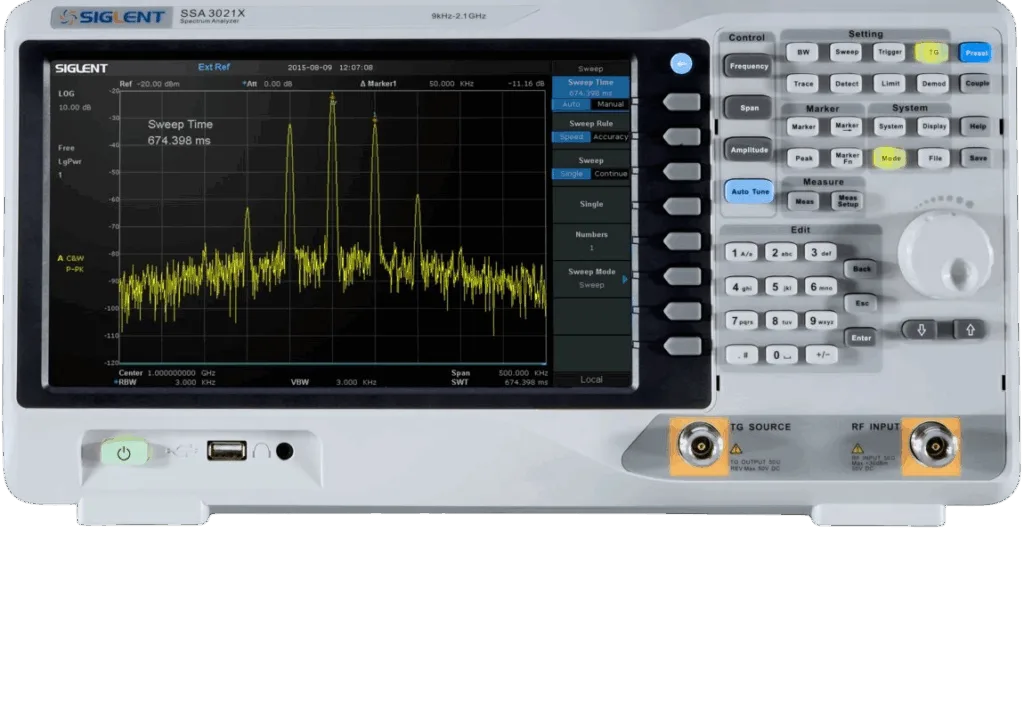

Video SSA3021X

Technical data
