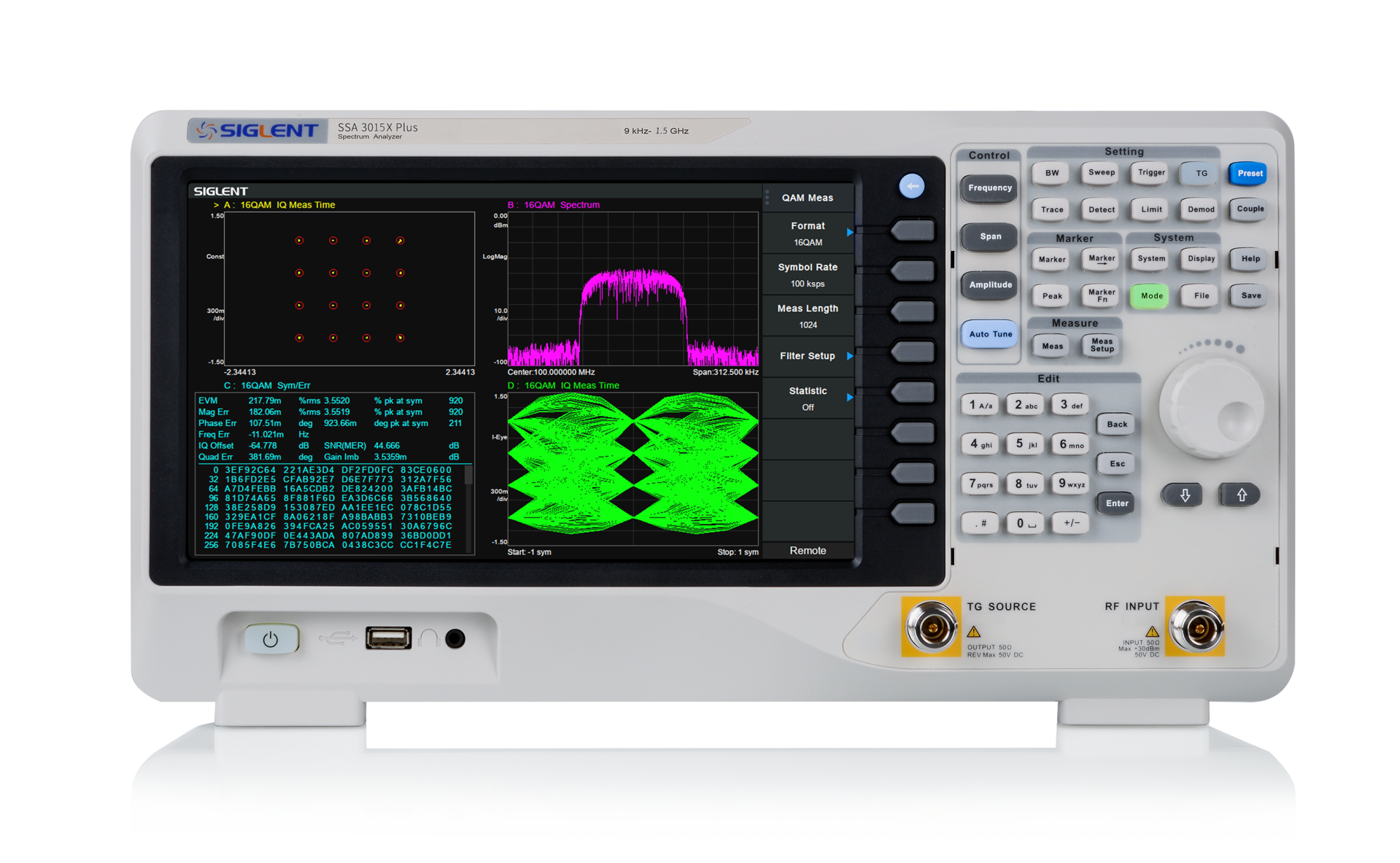

SSA3015X Plus

9KHz-1.5 GHz, Phase Noise

Article no. SSA3015X Plus

Frequency Max: 1500 MHz
Frequency min: 9000 Hz
Handheld: No
Analysis Bandwidth: 1 MHz

CHF 1'216.38

incl. 8.1% VAT · CHF 1'125.24 excl. VAT

B2B prices after login

Calibration & repair at our lab in Biel/Bienne
Expert advice: +41 (0)31 312 48 48

Overview

Description

1500 MHz frequency max
9000 Hz frequency min
1 MHz analysis bandwidth
-156 dBm/Hz danl

The SSA3015X Plus by Siglent operates within a frequency range of 9 kHz to 1.5 GHz, offering a maximum frequency of 1500 MHz and a minimum frequency of 9000 Hz. It features a phase noise level of less than -98 dBc/Hz, with a specified phase noise of -99 dBc/Hz, ensuring precise signal analysis. The device provides a resolution bandwidth (RBW) adjustable from 1 Hz to 1 MHz and a minimum displayed average noise level (DANL) of -161 dBm/Hz, supporting detailed signal detection. Its total amplitude accuracy is maintained below 0.7 dB, contributing to reliable measurement results. The SSA3015X Plus includes a 10.1-inch WVGA touch screen with a resolution of 1024x600, facilitating user interaction and control. The analysis bandwidth is set at 1 MHz, and the device is not handheld, indicating a stationary design. The displayed DANL is -156 dBm/Hz, complementing its sensitivity capabilities.

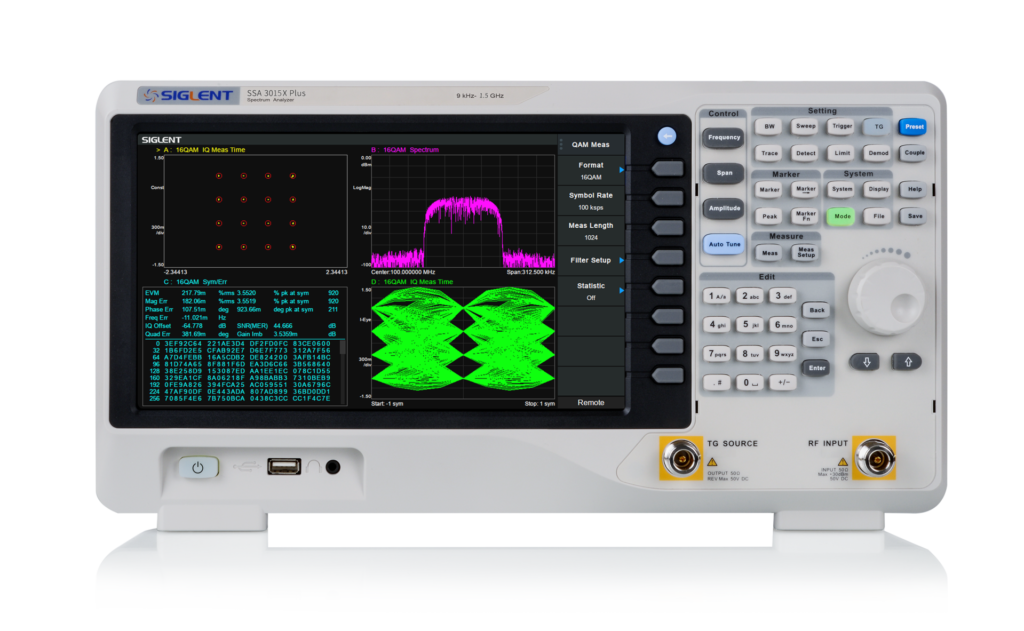

Video SSA3015X Plus

Technical data
