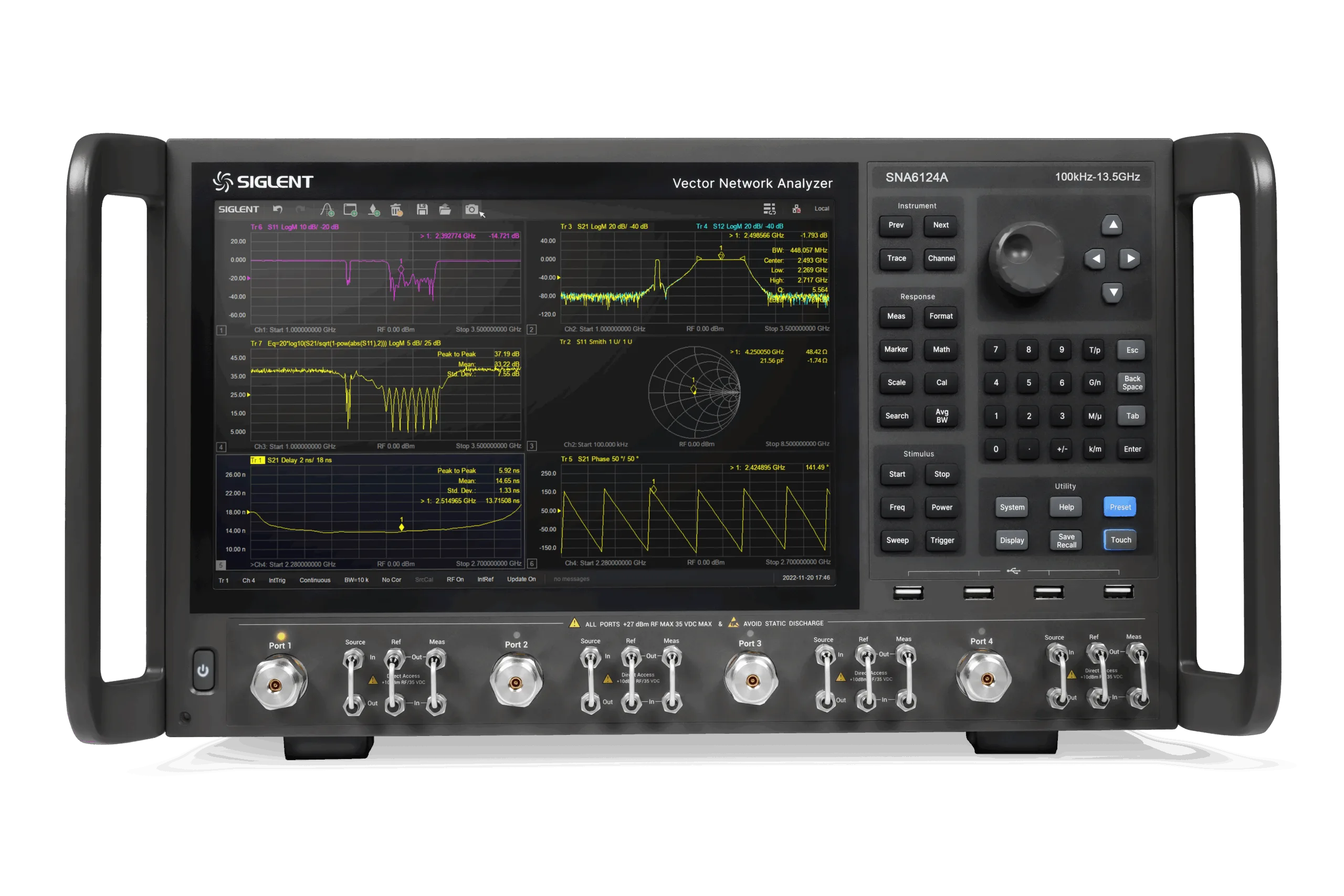

SNA6124A
100k~13.5GHz, 4 ports VNA with direct receiver access; stanadard setting range of output level: -55 ~ +10 dBm; dynamic range 135 dB; 12.1'' touch screen
Article no.
SNA6124A
- Frequency Max
- 13500 MHz
- Frequency min
- 100000 Hz
- Dynamic Range
- 135 dB
- Ports
- 4
CHF 58'337.27
incl. 8.1% VAT · CHF 53'966.02 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 13500 MHz frequency max
- 100000 Hz frequency min
- 135 dB dynamic range
- 4 ports
The SNA6124A by Siglent is a vector network analyzer featuring a frequency range from 100 kHz to 13.5 GHz and equipped with four ports. It offers direct receiver access, allowing for detailed signal analysis. The device has a standard output level setting range from -55 to +10 dBm, providing flexibility in signal output control. Its dynamic range reaches up to 135 dB, supporting high-precision measurements. The analyzer includes a 12.1-inch touch screen, enhancing user interaction and ease of operation. With a maximum frequency capability of 13,500 MHz and a minimum frequency of 100,000 Hz, it covers a broad spectrum suitable for various testing applications. The combination of these features makes the SNA6124A a versatile instrument for network analysis tasks.

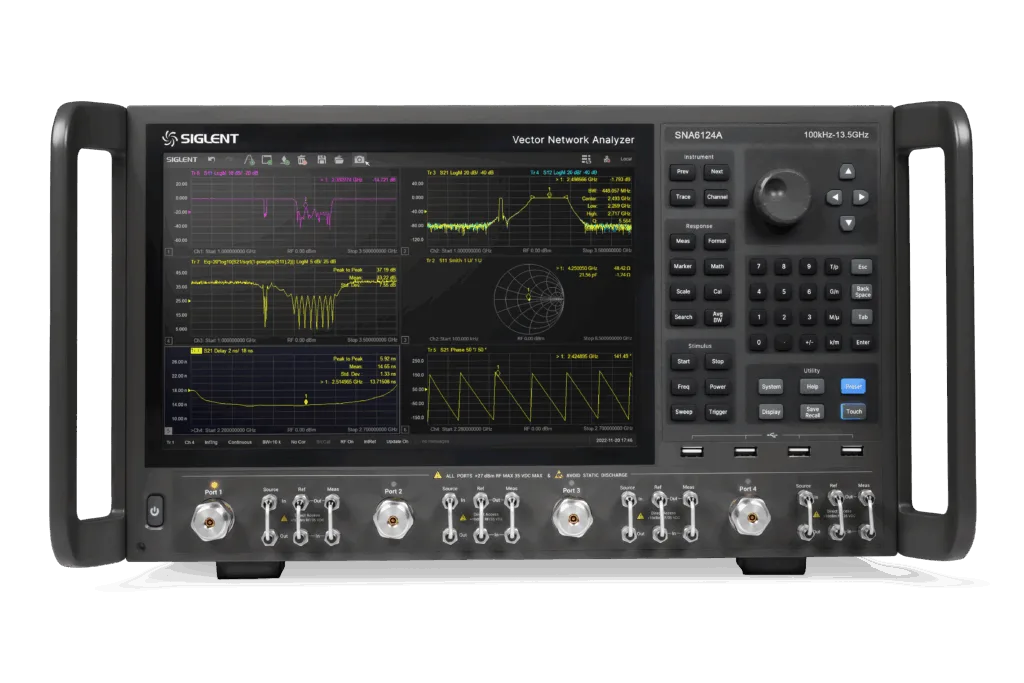

Video
SNA6124A
Technical data
Specifications
5- Frequency Max
- 13500 MHz
- Frequency min
- 100000 Hz
- Dynamic Range
- 135 dB
- Ports
- 4
- Handheld
- No
