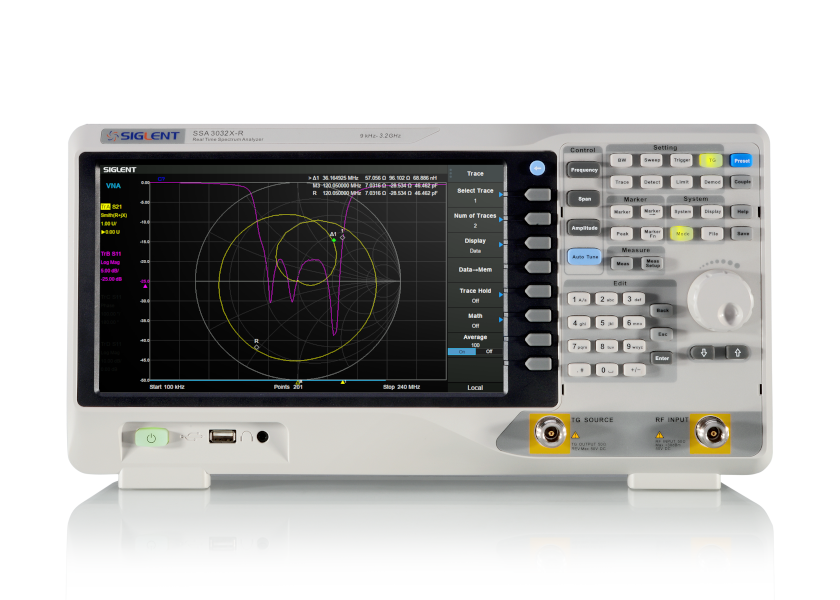

SSA3032X-R

Description

The SSA3032X-R by Siglent operates over a frequency range from 9 kHz to 3.2 GHz, providing versatile measurement capabilities. It features a vector network analyzer (VNA) function covering 100 kHz to 3.2 GHz, allowing for detailed network analysis. The resolution bandwidth (RBW) can be adjusted from 1 Hz to 3 MHz, supporting precise signal resolution. The device offers a displayed average noise level (DANL) of -165 dBm/Hz, ensuring sensitivity to low-level signals. Phase noise performance is rated at less than -98 dBc/Hz, contributing to signal clarity. Real-time bandwidth is available at 25 MHz, with an optional upgrade to 40 MHz, enabling comprehensive real-time spectrum analysis. The real-time spectrum analyzer (RTSA) measurement modes include density, spectrogram, 3D, and PvT, enhancing signal visualization. Additionally, the instrument supports standard VNA and distance-to-fault (DTF) functions, expanding its application range. The maximum frequency capability is 3.2 GHz, and the minimum frequency is 9 kHz. This model is not handheld and includes an analysis bandwidth of 40 MHz.

Additional information

SA 9 kHz - 3.2 GHz; VNA 100kHz~3.2GHz; RBW 1 Hz - 3 MHz; DANL -165 dBm/Hz; Phase Noise
