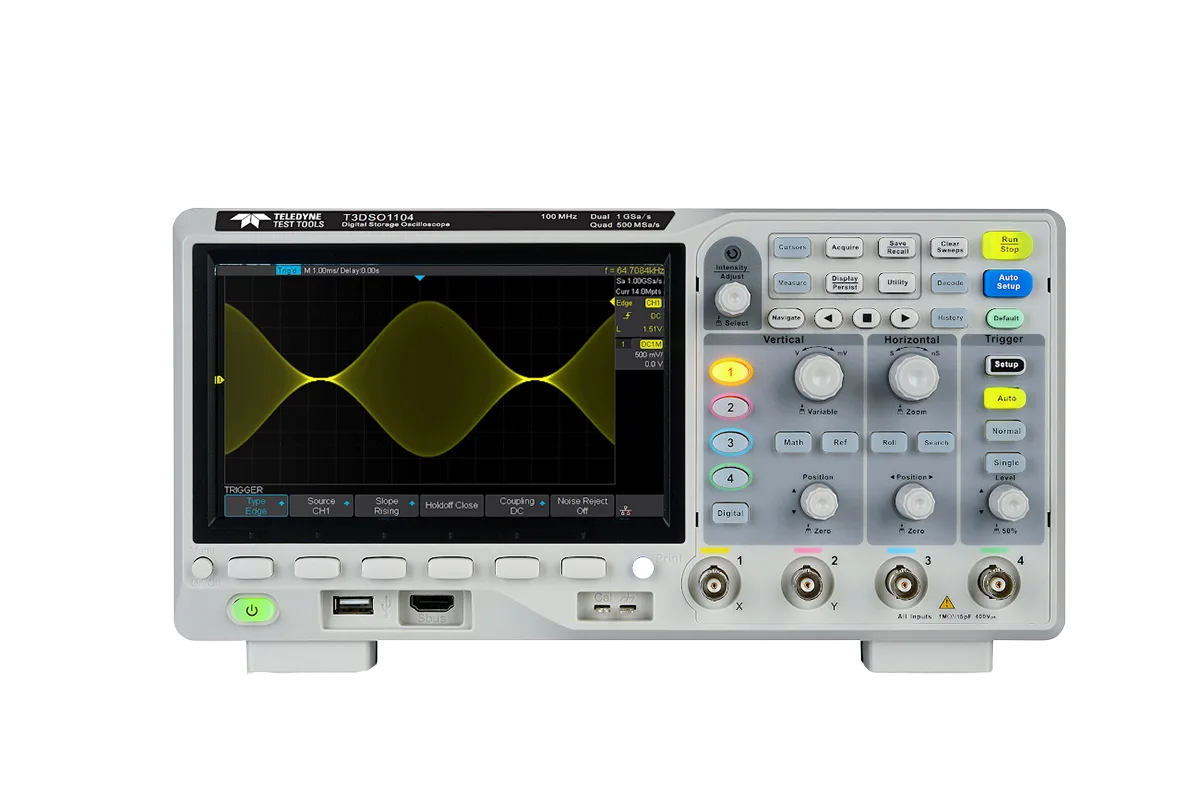

T3DSO1104
100 MHz, 500 MS/s per Ch, 1 GS/s interleaved, 4 CH, 7 Mpts/Ch DSO with 7" Color Display
Article no.
T3DSO1104
- Channels
- 4
- Bandwidth
- 100 MHz
- Sampling Rate/Channels
- 500 MS/s
- Memory Depht
- 14 Mpts
CHF 1'221.53
incl. 8.1% VAT · CHF 1'130.00 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 4 channels
- 100 MHz bandwidth
- 500 MS/s sampling rate
- 14 Mpts memory depht
- 8 Bits vertical resolution
The Teledyne Lecroy T3DSO1104 is a digital storage oscilloscope featuring four channels with a bandwidth of 100 MHz. Each channel supports a sampling rate of 500 MS/s, and when interleaved, the device achieves a combined sampling rate of 1 GS/s. It offers a memory depth of 7 million points per channel, totaling 14 million points across all channels. The oscilloscope has an 8-bit vertical resolution, allowing for detailed signal analysis. The device is equipped with a 7-inch color display, providing clear visualization of waveforms. It does not include a touch screen interface. This model is designed to handle a variety of signal measurements with its multi-channel capability and substantial memory depth.
Technical data
Specifications
8- Channels
- 4
- Bandwidth
- 100 MHz
- Sampling Rate/Channels
- 500 MS/s
- Memory Depht
- 14 Mpts
- Vertical Resolution
- 8 Bits
- Digital Channels
- Opt
- Touch Screen
- No
- Imax AC
