T3DSO4108L-HD
1GHz, 10 GS/s ESR, 8 CH, 500 Mpts/Ch (Single Channel), 12-Bit HD Low Profile Oscilloscope
Article no.
T3DSO4108L-HD
- Channels
- 8
- Bandwidth
- 1000 MHz
- Sampling Rate/Channels
- 10000 MS/s
- Memory Depht
- 125 Mpts
CHF 40'099.70
incl. 8.1% VAT · CHF 37'095.00 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 8 channels
- 1000 MHz bandwidth
- 10000 MS/s sampling rate
- 125 Mpts memory depht
- 12 Bits vertical resolution

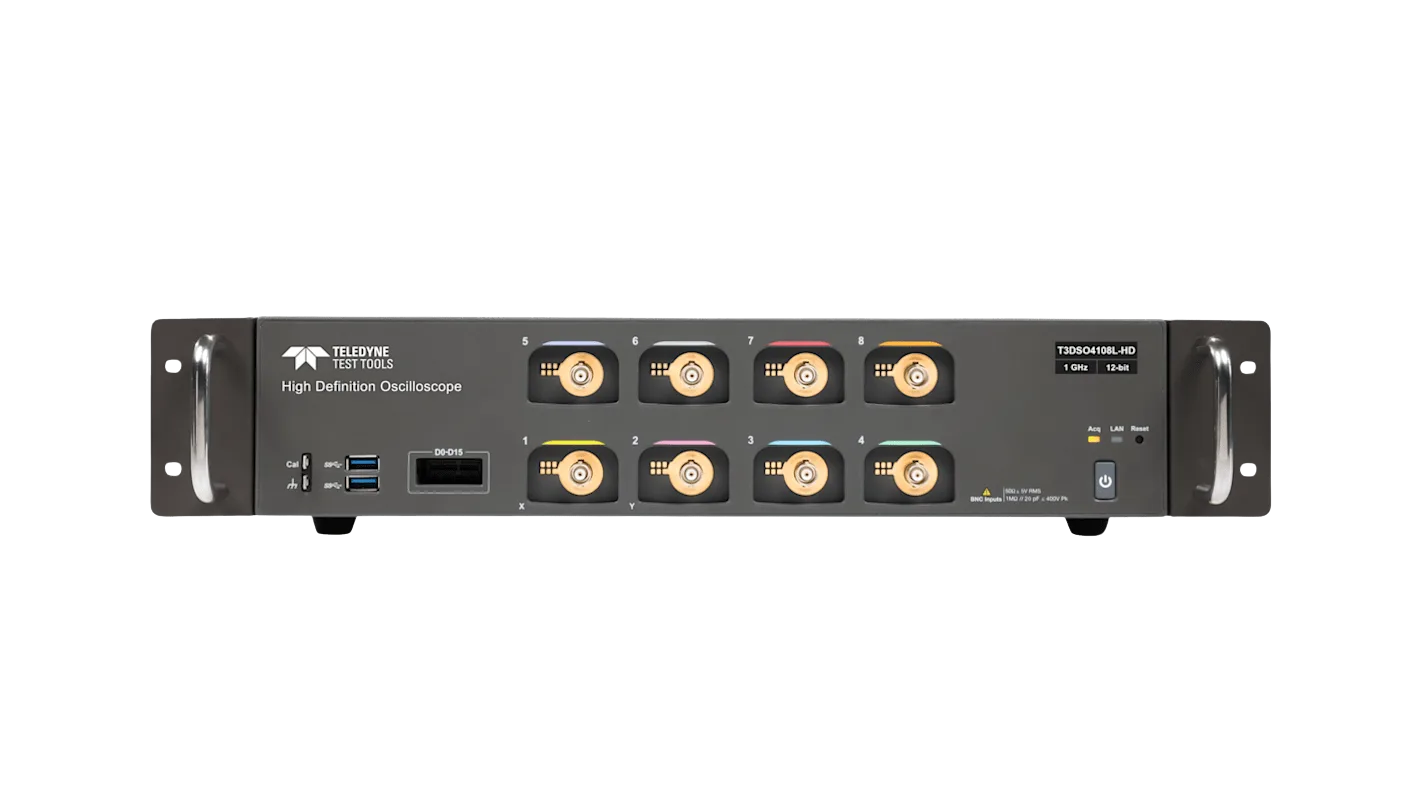

The Teledyne Lecroy T3DSO4108L-HD is a high-definition oscilloscope featuring a bandwidth of 1 GHz and a sampling rate of 10 GS/s per channel. It supports eight channels, allowing for extensive signal analysis across multiple inputs simultaneously. Each channel is equipped with a memory depth of 500 million points, enabling detailed waveform capture and analysis. The device offers a vertical resolution of 12 bits, providing precise measurement capabilities. This low-profile oscilloscope is designed to handle complex testing scenarios with its substantial memory depth of 125 million points per channel. It does not include a touch screen interface, focusing instead on core measurement functionalities. The T3DSO4108L-HD is suitable for applications requiring high-speed data acquisition and detailed signal resolution.
Technical data
Specifications
8- Channels
- 8
- Bandwidth
- 1000 MHz
- Sampling Rate/Channels
- 10000 MS/s
- Memory Depht
- 125 Mpts
- Vertical Resolution
- 12 Bits
- Digital Channels
- Opt
- Touch Screen
- No
- Imax AC
