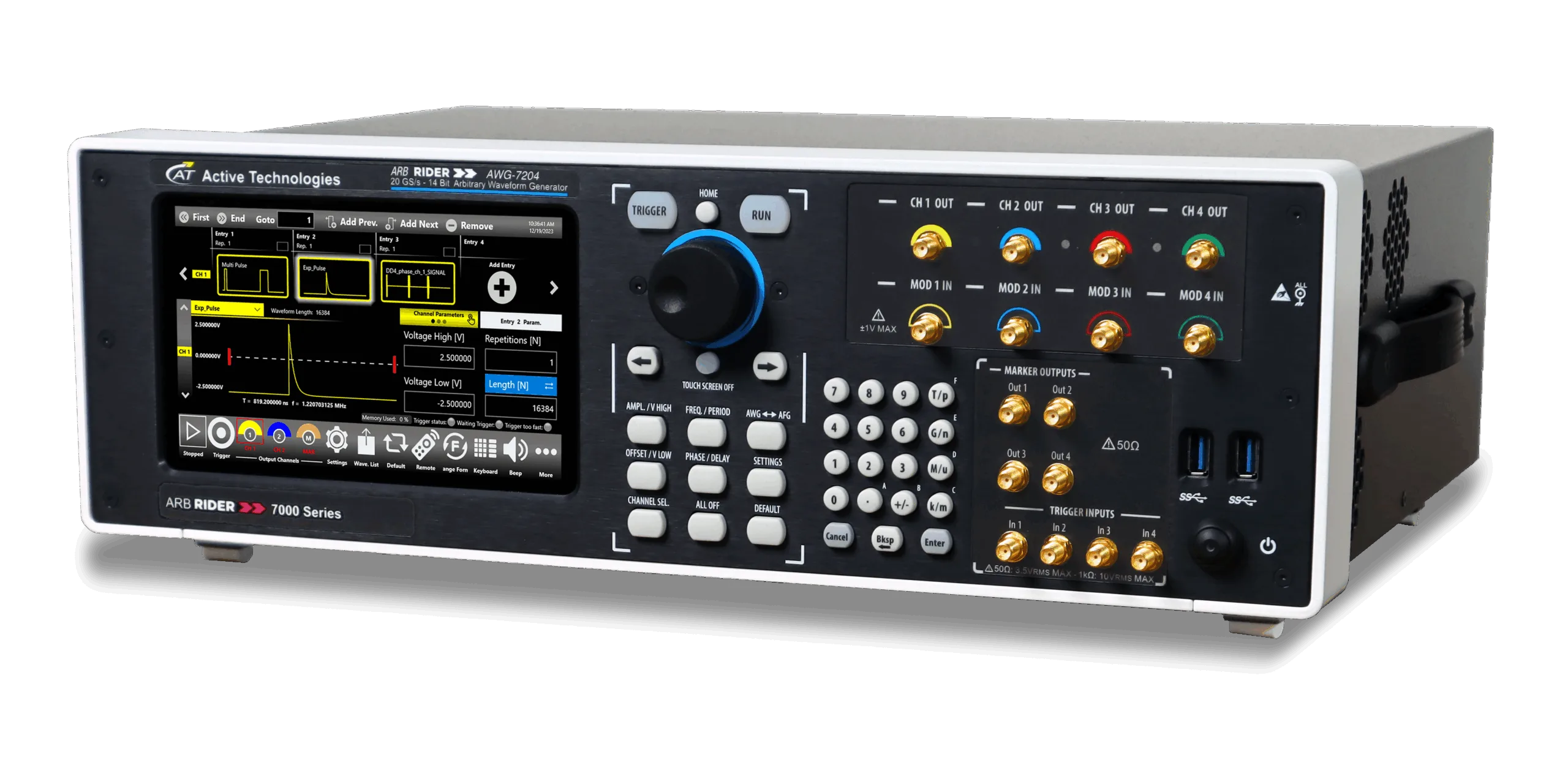

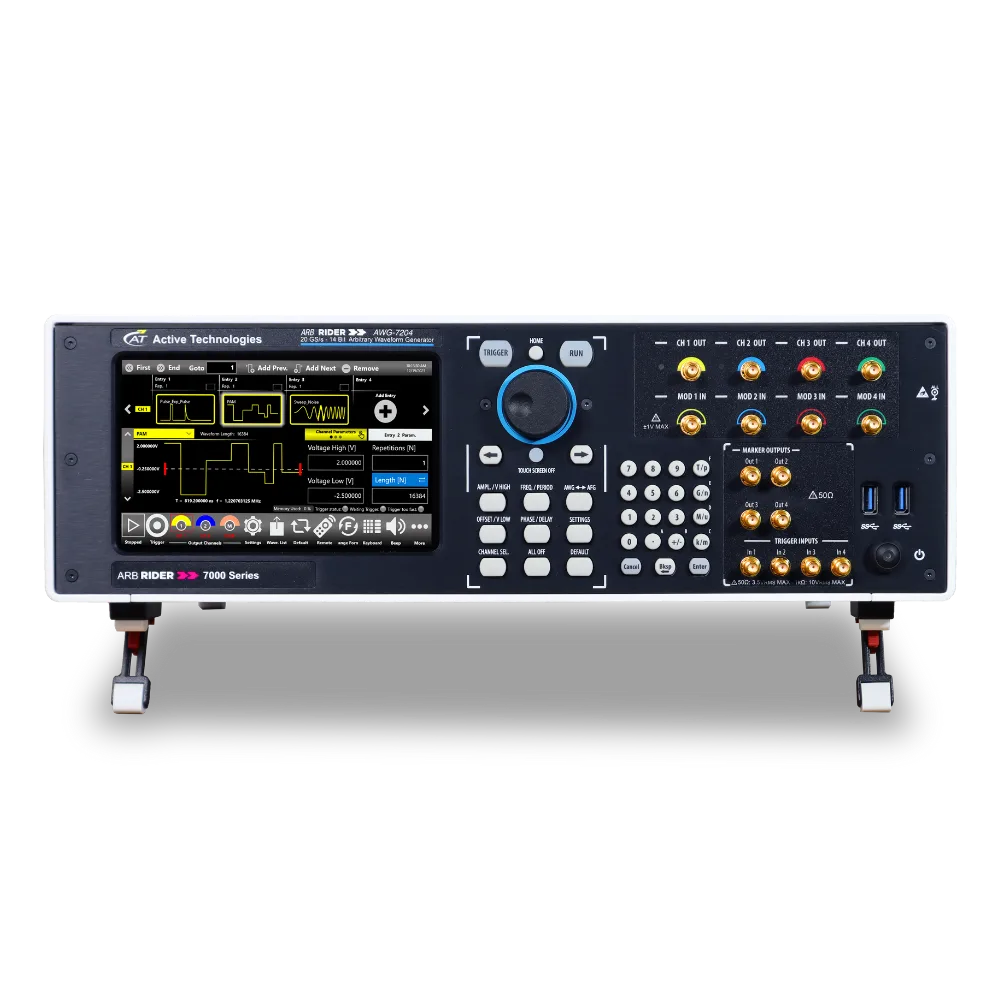

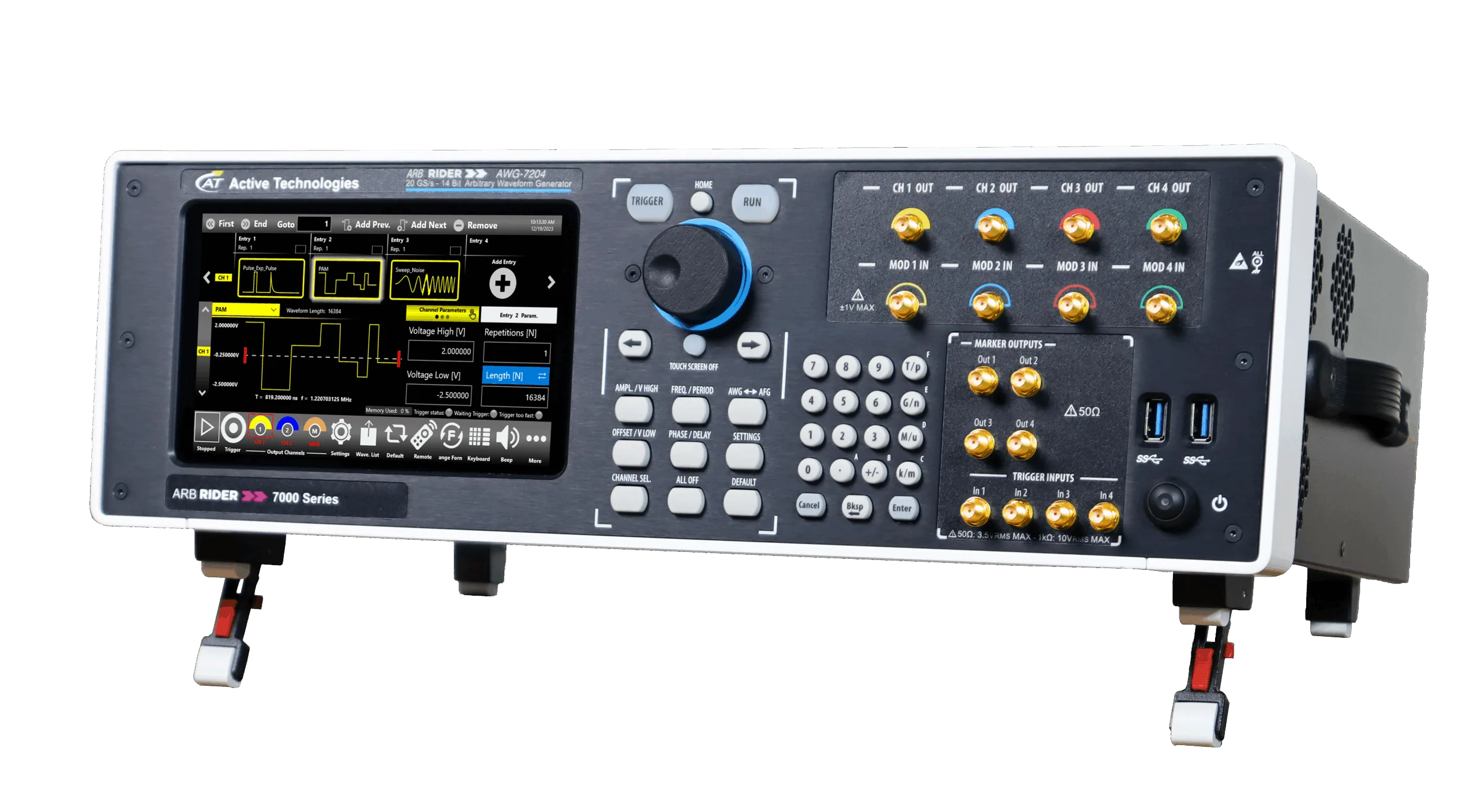

AWG-7174D-S
Description
The AWG-7174D-S from Active Technologies features four channels with a maximum sampling rate of 17 GS/s per channel, enabling high-speed signal generation. Each channel is equipped with 512 Kpts of memory depth, allowing for detailed waveform storage and playback. The device supports a maximum frequency of 3.25 GHz and provides a differential output amplitude of 1.25 Vpp. It includes sweep and burst functionalities, enhancing its versatility for various signal generation applications. The minimum transition time is 0.12 ns, and the minimum pulse width is 0.15 ns, supporting precise timing control. This model is designed to deliver an amplitude of 1 V, making it suitable for a range of testing and measurement tasks. The combination of high sampling rate, substantial memory depth, and fast transition times makes the AWG-7174D-S a capable instrument for advanced waveform generation.
Additional information
4CH - 17 GS/s - 8.5 GHz - 512 Kpts Memory per CH - 1.25Vpp differential output
