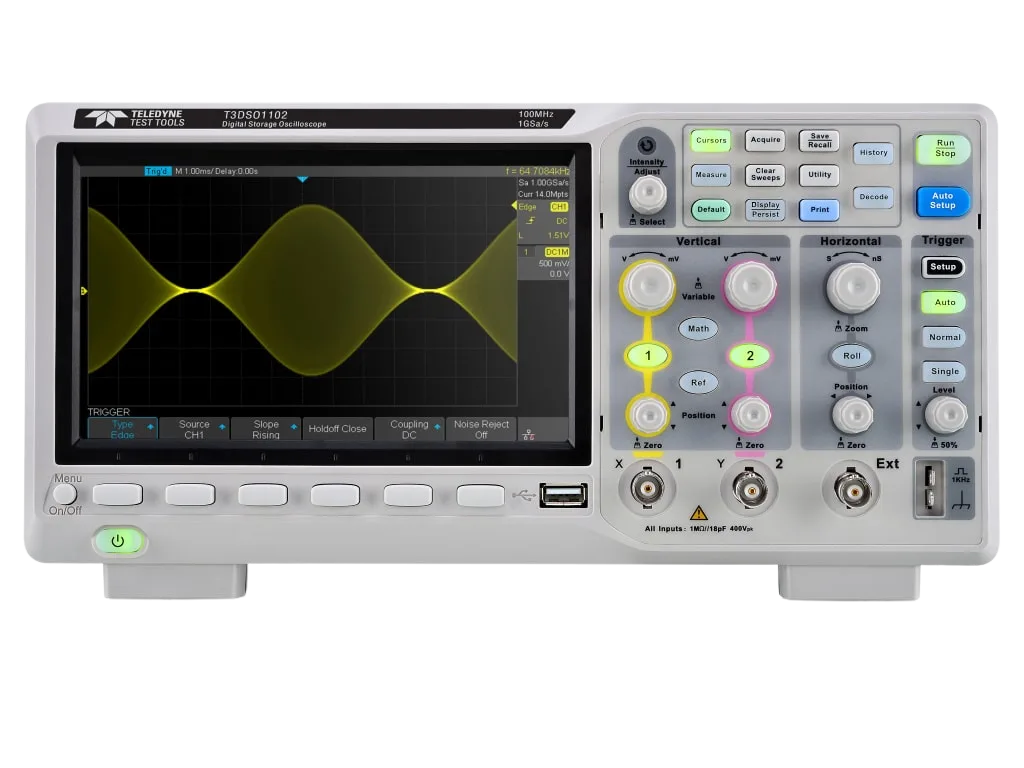

T3DSO1102
100 MHz, 500 MS/s per Ch, 1 GS/s interleaved, 2 CH, 7 Mpts/Ch DSO with 7" Color Display
Article no.
T3DSO1102
- Channels
- 2
- Bandwidth
- 100 MHz
- Sampling Rate/Channels
- 500 MS/s
- Memory Depht
- 14 Mpts
CHF 989.12
incl. 8.1% VAT · CHF 915.00 excl. VAT
- Calibration & repair at our lab in Biel/Bienne
- Expert advice: +41 (0)31 312 48 48
Overview
Description
- 2 channels
- 100 MHz bandwidth
- 500 MS/s sampling rate
- 14 Mpts memory depht
- 8 Bits vertical resolution
The Teledyne Lecroy T3DSO1102 is a digital storage oscilloscope featuring a bandwidth of 100 MHz and two channels. It offers a sampling rate of 500 MS/s per channel, which can be interleaved to achieve a combined rate of 1 GS/s. Each channel is equipped with a memory depth of 7 Mpts, totaling 14 Mpts across both channels. The device has an 8-bit vertical resolution and includes a 7-inch color display for signal visualization. It does not have digital channels or a touch screen interface. This oscilloscope is designed to capture and analyze electronic signals with precision, supporting detailed waveform analysis through its substantial memory and sampling capabilities.
Technical data
Specifications
8- Channels
- 2
- Bandwidth
- 100 MHz
- Sampling Rate/Channels
- 500 MS/s
- Memory Depht
- 14 Mpts
- Vertical Resolution
- 8 Bits
- Digital Channels
- No
- Touch Screen
- No
- Imax AC
