AWG5032D
2CH -3 GS/s - 1 GHz - 2048Mpts per CH - 1.5Vpp differential output
Article no.
AWG5032D
- Channels
- 2
- Vertical Resolution
- 16 Bits
- Frequency
- 1000 MHz
- Amplitude
- 1.5 V
Price on request
The price depends on configuration and options. Tell us what you need and you get a quote within one working day.
- Personal offer from our team in Biel/Bienne
- Calibration & repair at our lab
Overview
Description
- 2 channels
- 16 Bits vertical resolution
- 1000 MHz frequency
- 1.5 V amplitude
- Sweep

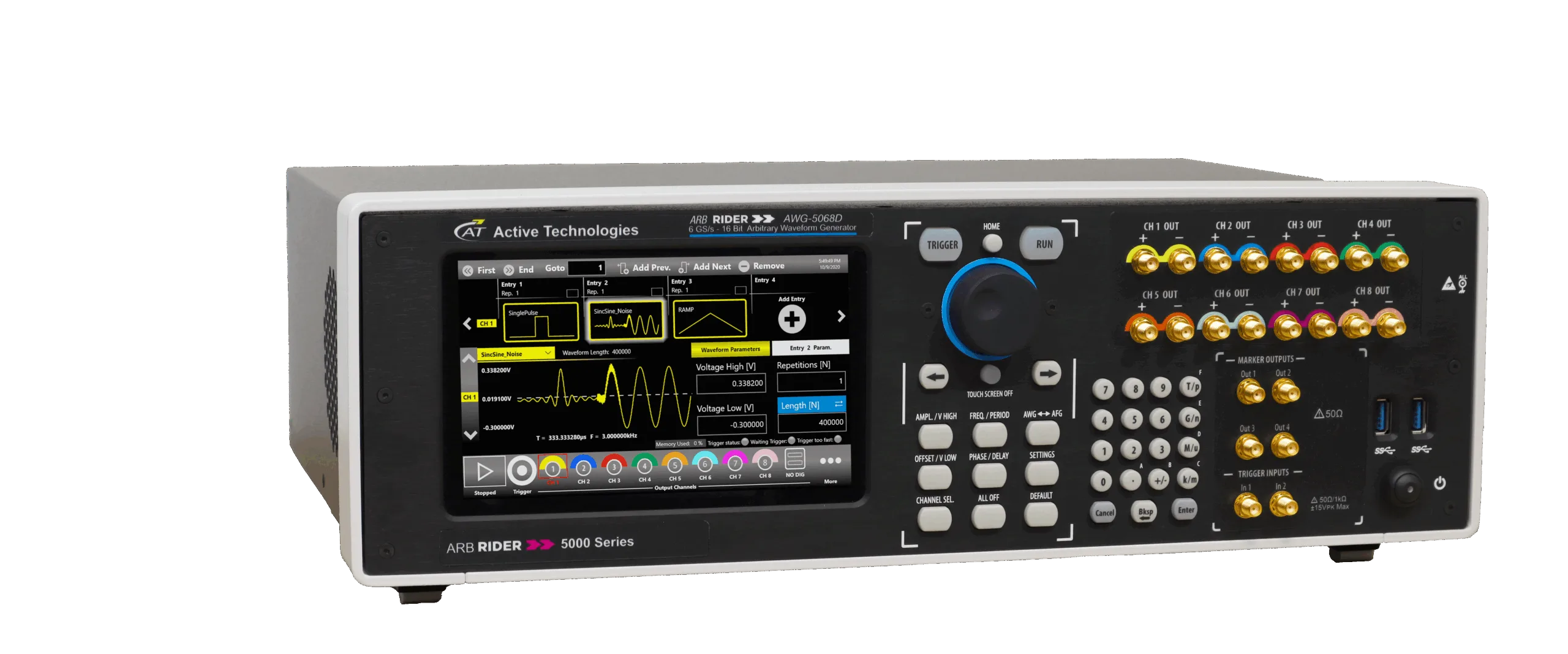

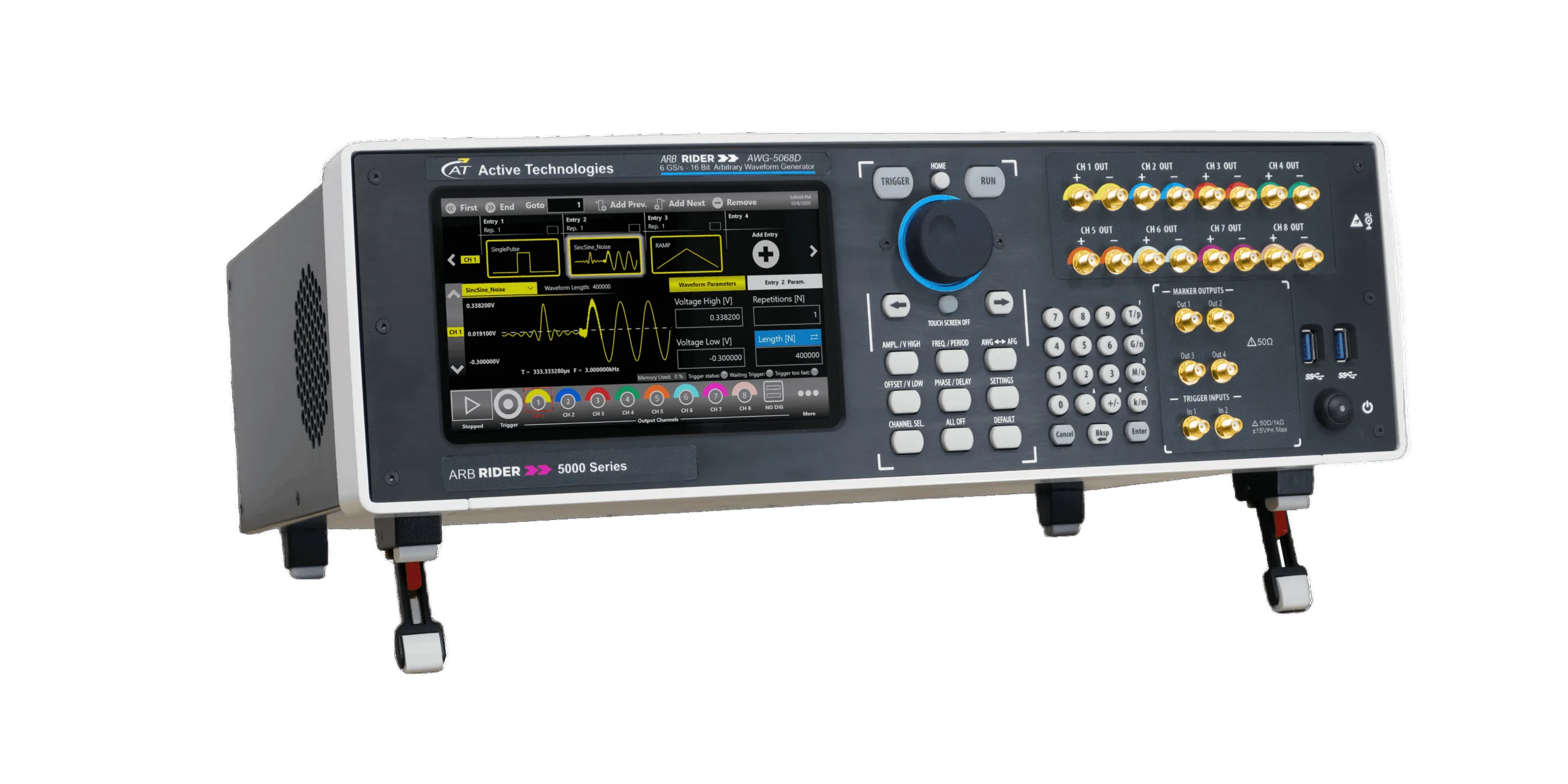

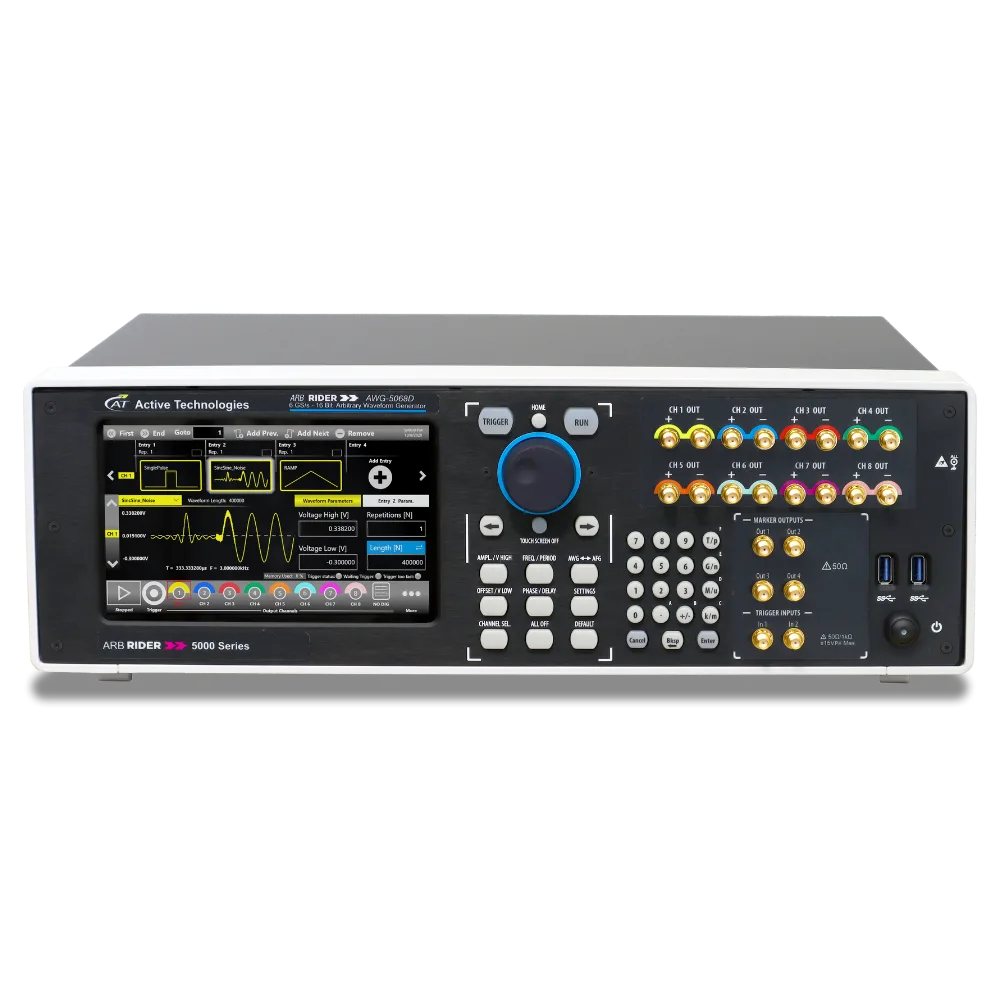

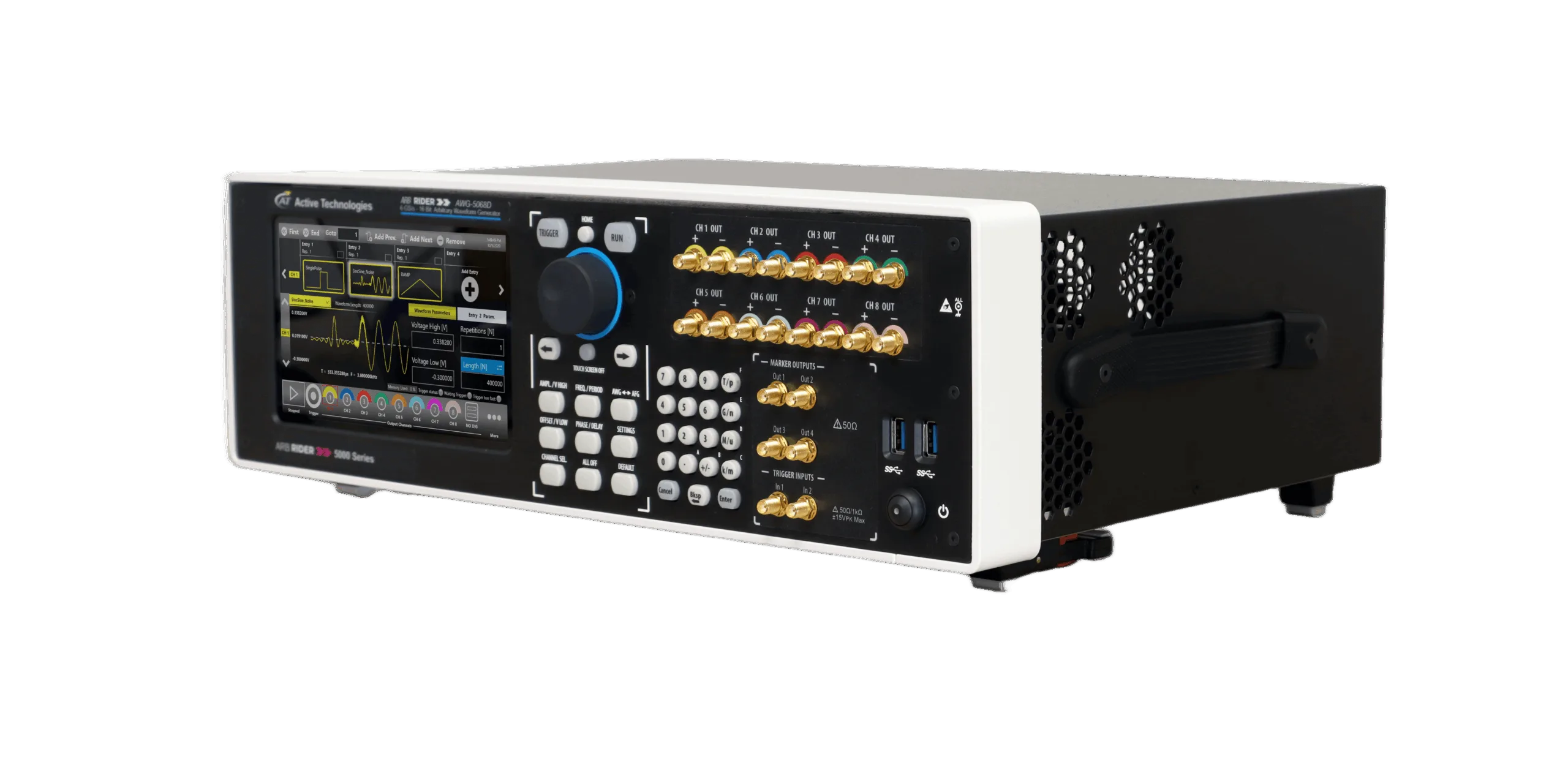

The AWG5032D from Active Technologies features two channels with a maximum frequency of 1 GHz and a sampling rate of 3 GS/s. It offers a memory depth of 2048 Mpts per channel, totaling 4096 Mpts, which supports extensive waveform generation and storage. The device provides a differential output amplitude of 1.5 Vpp, suitable for various signal applications. It includes sweep and burst functionalities, enhancing its versatility in signal generation tasks. The minimum transition time is 0.2 ns, and the minimum pulse width is 1 ns, allowing for precise control over signal timing. This model is designed to handle high-speed and high-resolution waveform generation with its advanced specifications.
Technical data
Specifications
10- Channels
- 2
- Vertical Resolution
- 16 Bits
- Frequency
- 1000 MHz
- Amplitude
- 1.5 V
- Sweep
- Yes
- Burst
- Yes
- Sampling Rate
- 3000 MS/s
- Memory
- 4096 MPts
- Transition time min
- 0.2 ns
- Pulse Width min
- 1 ns
