MS2090A-0714
High Frequency Handheld RF Spectrum Analyzer 14GHz
Article no.
MS2090A-0714
- Frequency Max
- 14000 MHz
- Frequency min
- 9000 Hz
- Handheld
- Yes
- Analysis Bandwidth
- 150 MHz
Price on request
The price depends on configuration and options. Tell us what you need and you get a quote within one working day.
- Personal offer from our team in Biel/Bienne
- Calibration & repair at our lab
Overview
Description
- 14000 MHz frequency max
- 9000 Hz frequency min
- Handheld
- 150 MHz analysis bandwidth
- -164 dBm/Hz danl

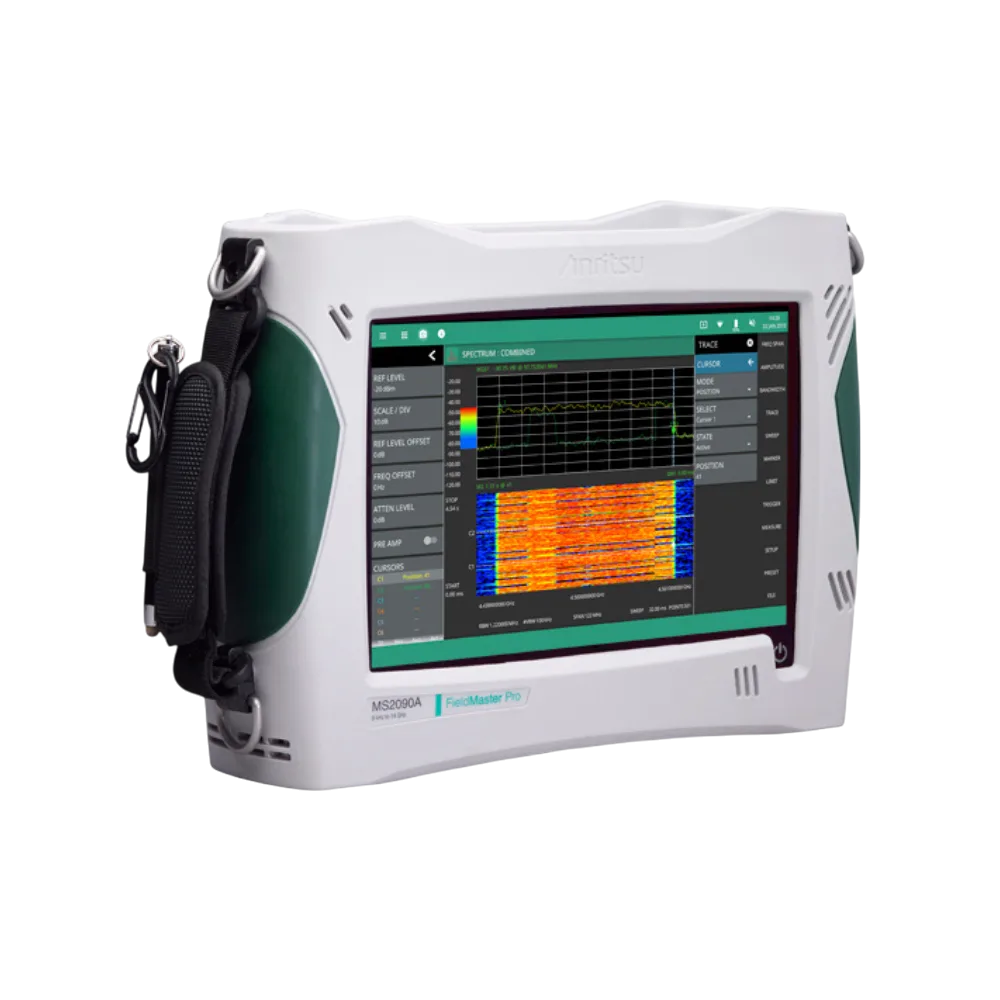

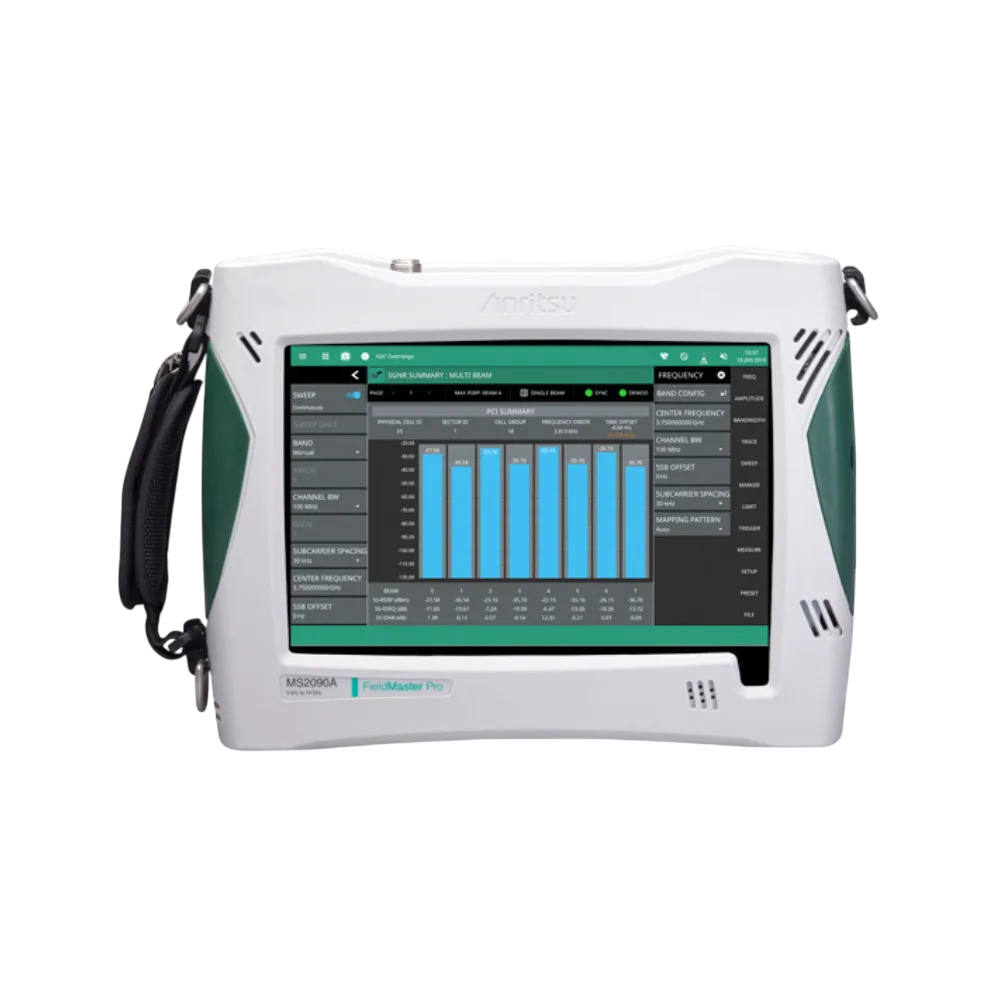

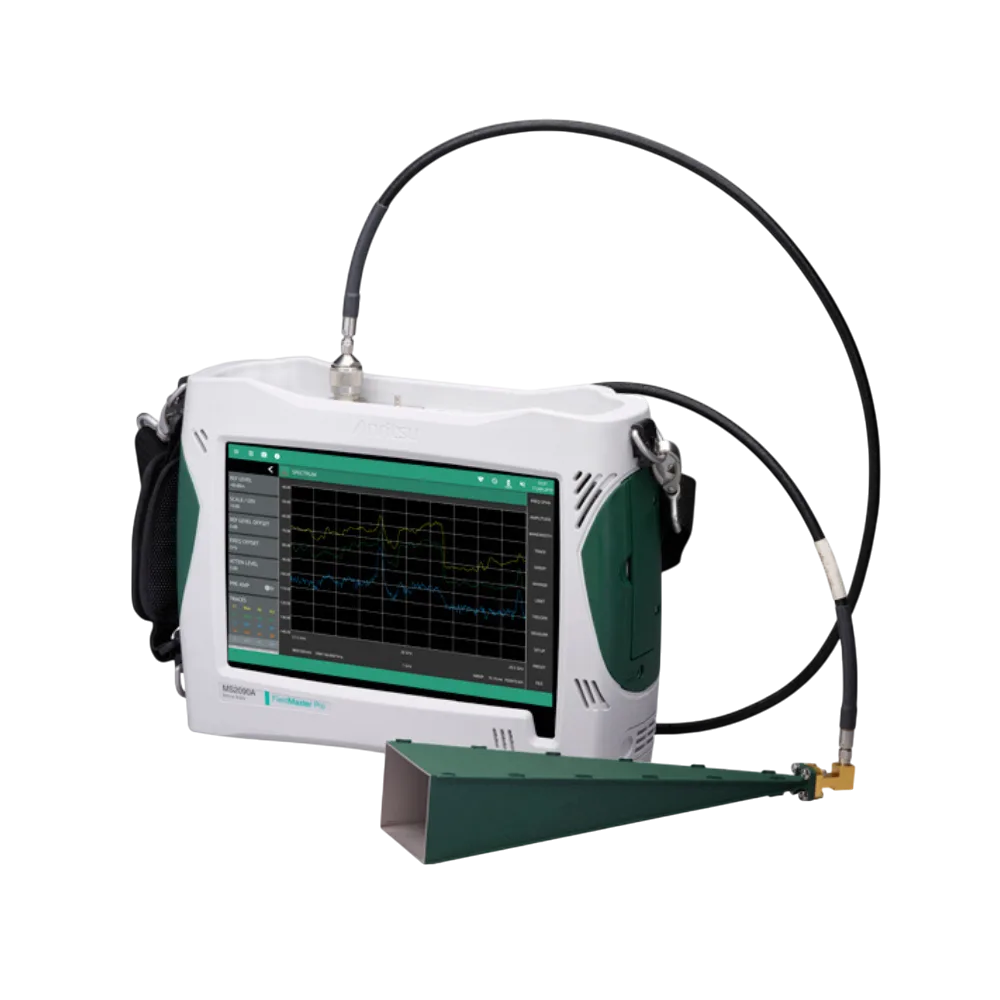

The MS2090A-0714 by Anritsu is a high frequency handheld RF spectrum analyzer capable of operating up to 14 GHz. It features a frequency range starting from 9 kHz and extending to a maximum of 14,000 MHz. This device includes a phase noise specification of -102 dBc/Hz, which is critical for assessing signal purity. The analyzer supports an analysis bandwidth of 150 MHz, allowing for detailed examination of signal components within this range. It also offers a displayed average noise level (DANL) of -164 dBm/Hz, indicating its sensitivity to low-level signals. The MS2090A-0714 is designed for handheld use, providing portability for field measurements. Additionally, it includes real-time spectrum analysis (RTSA) capabilities, enabling the capture and analysis of transient and dynamic signals in real time.
Technical data
Specifications
6- Frequency Max
- 14000 MHz
- Frequency min
- 9000 Hz
- Handheld
- Yes
- Analysis Bandwidth
- 150 MHz
- DANL
- -164 dBm/Hz
- RTSA
- Yes
