MS46522B-083
ShockLine™ 2-Port VNA 92GHz five meters tethers
Article no.
MS46522B-083
- Frequency Max
- 92000 MHz
- Frequency min
- 55000000000 Hz
- Ports
- 2
- Handheld
- No
Price on request
The price depends on configuration and options. Tell us what you need and you get a quote within one working day.
- Personal offer from our team in Biel/Bienne
- Calibration & repair at our lab
Overview
Description
- 92000 MHz frequency max
- 55000000000 Hz frequency min
- 2 ports

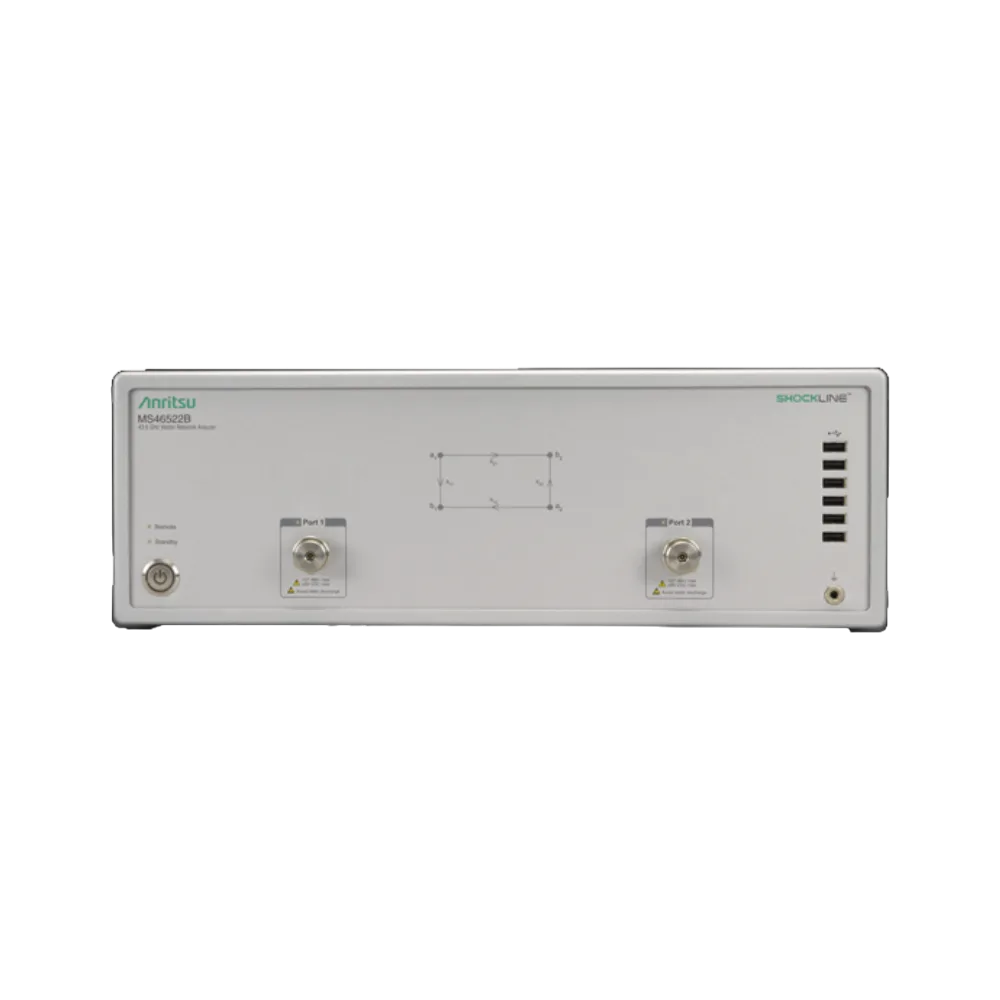

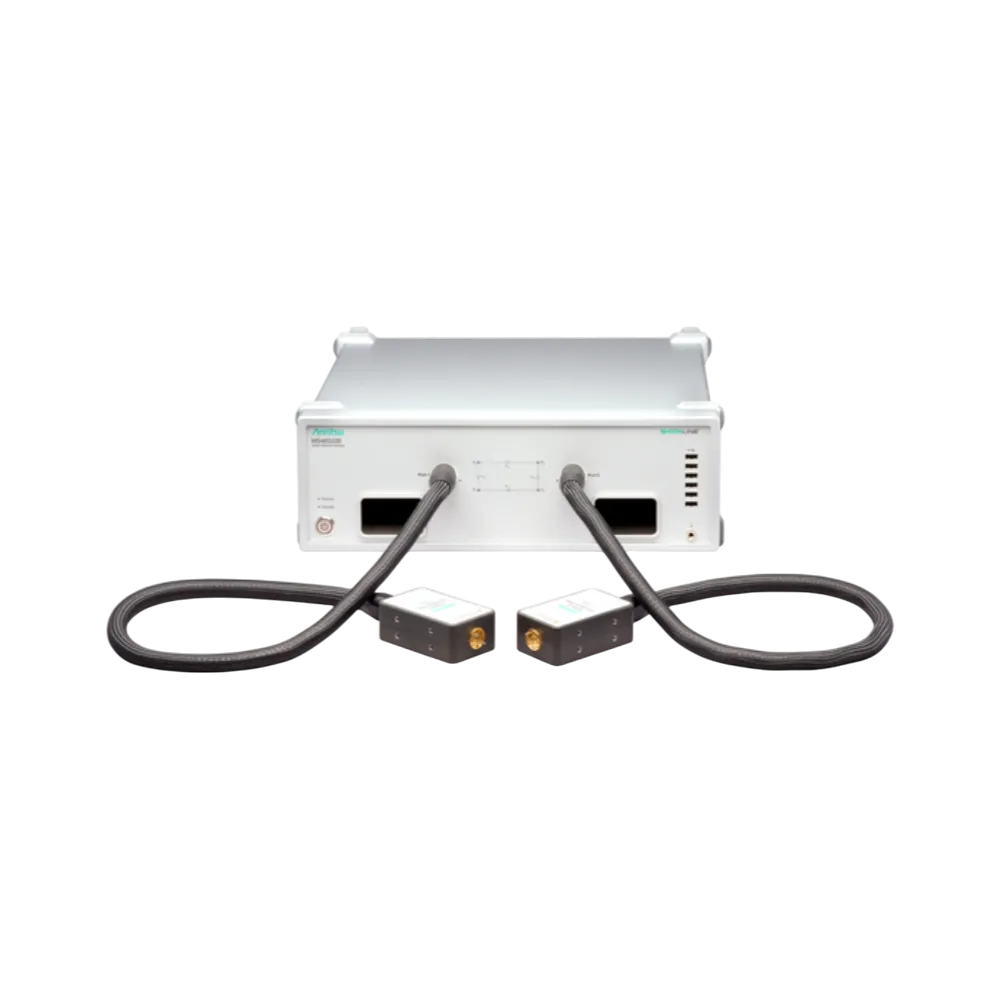

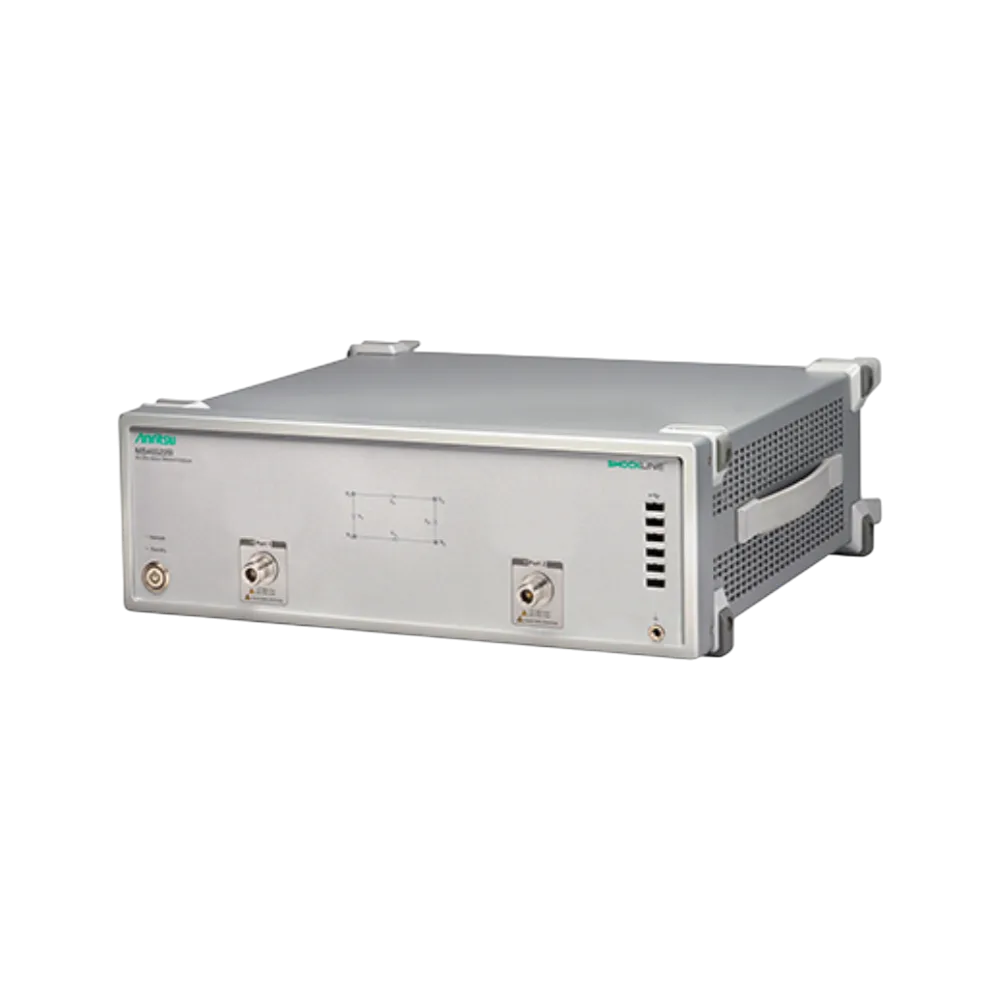

The Anritsu MS46522B-083 ShockLine™ 2-Port Vector Network Analyzer operates with a frequency range spanning from 55 GHz to 92 GHz, providing high-frequency measurement capabilities. It features two ports and includes five meters of tethers, facilitating flexible connectivity during testing. This device is not handheld, indicating it is designed for benchtop or fixed installation use. The maximum frequency supported is 92,000 MHz, while the minimum frequency is 55,000,000,000 Hz, covering a broad spectrum for various applications. The analyzer is part of the ShockLine™ series, known for precision in network analysis. Although specific details about power, voltage, current, and other electrical characteristics are not listed, the focus on high-frequency performance and dual-port configuration highlights its suitability for advanced RF testing environments.
Technical data
Specifications
4- Frequency Max
- 92000 MHz
- Frequency min
- 55000000000 Hz
- Ports
- 2
- Handheld
- No
