ME7869A-010

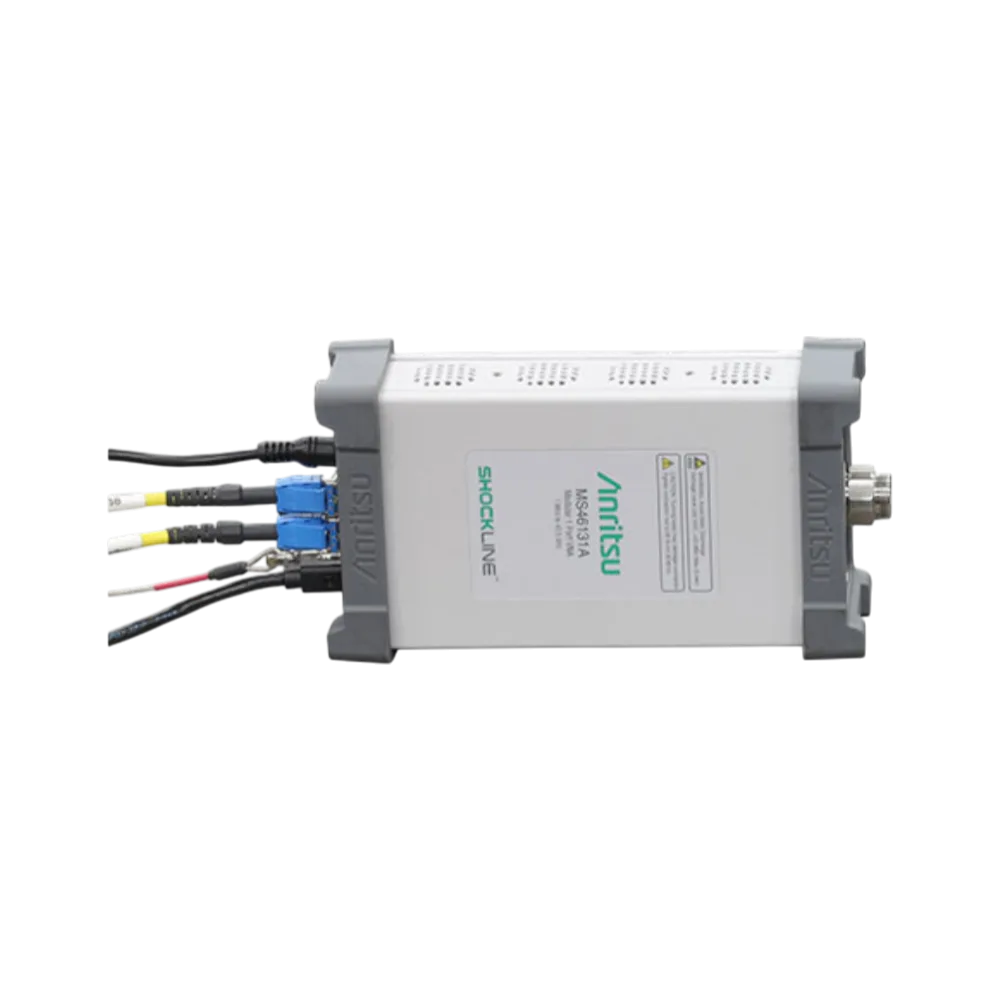

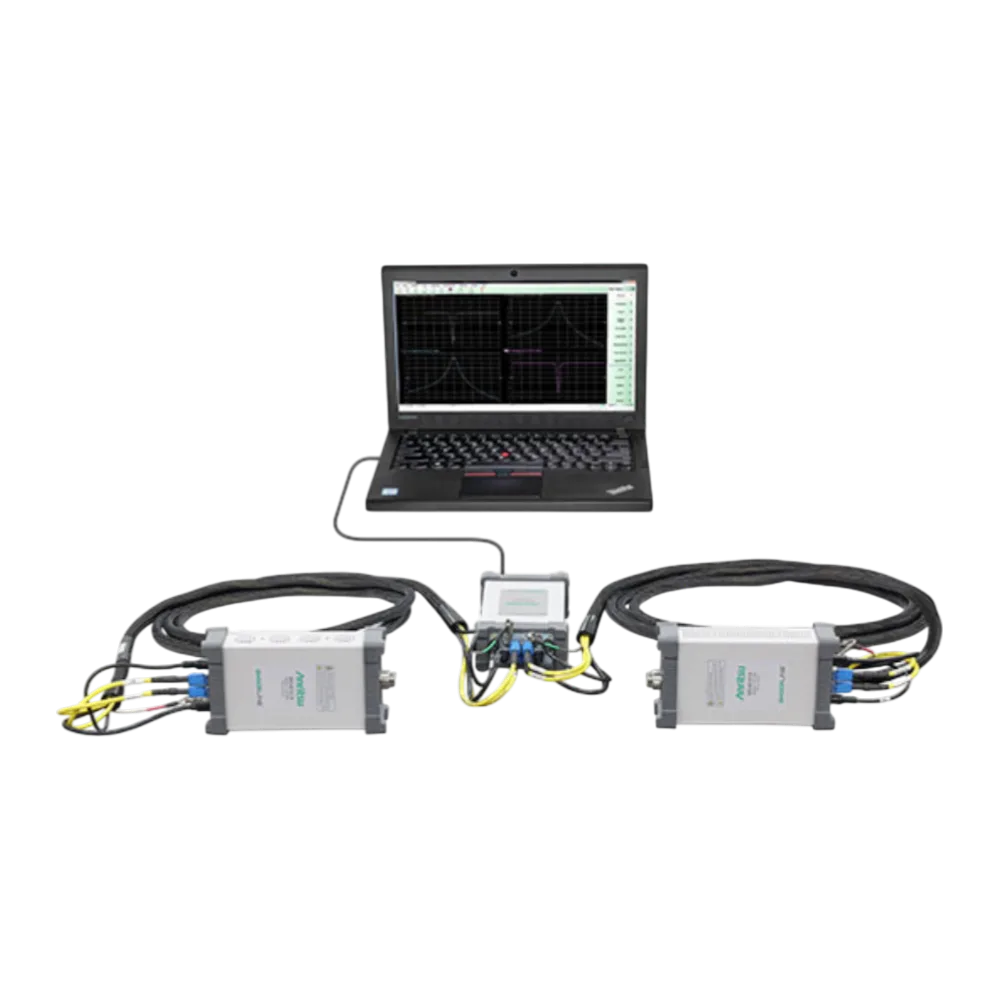

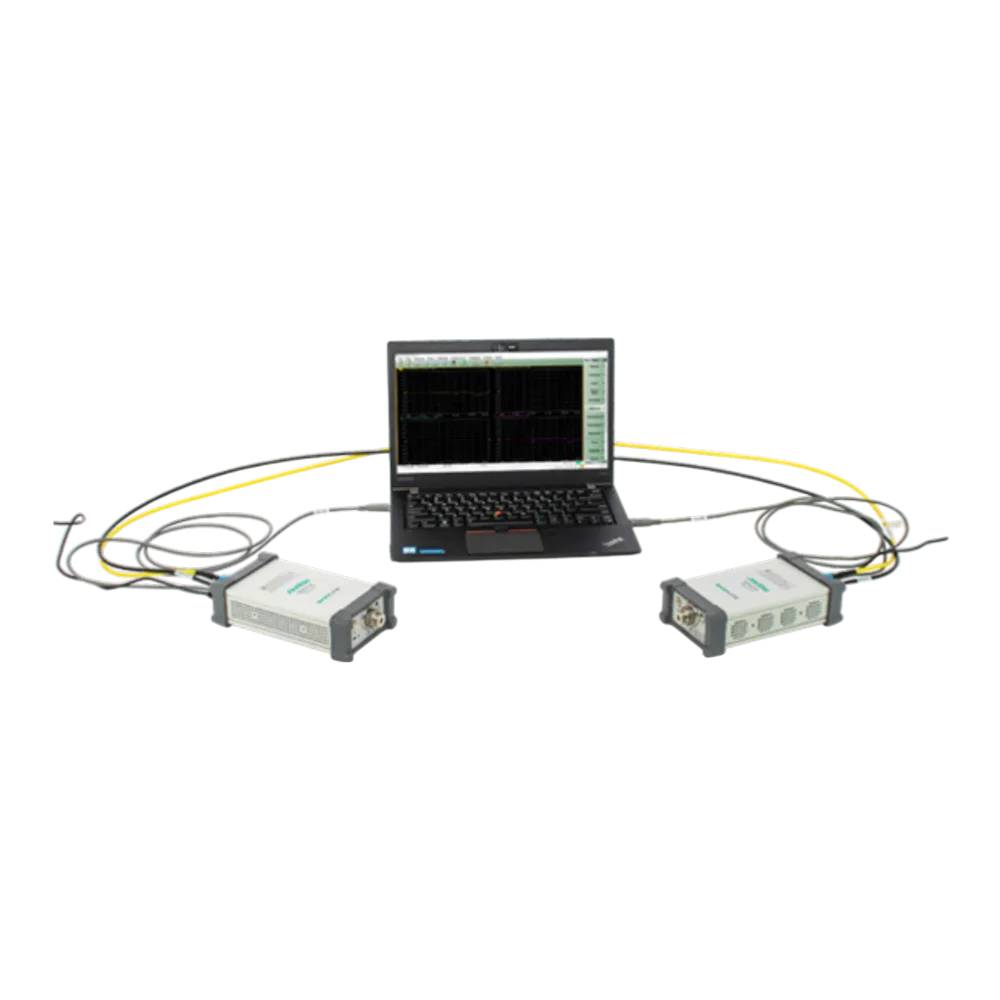

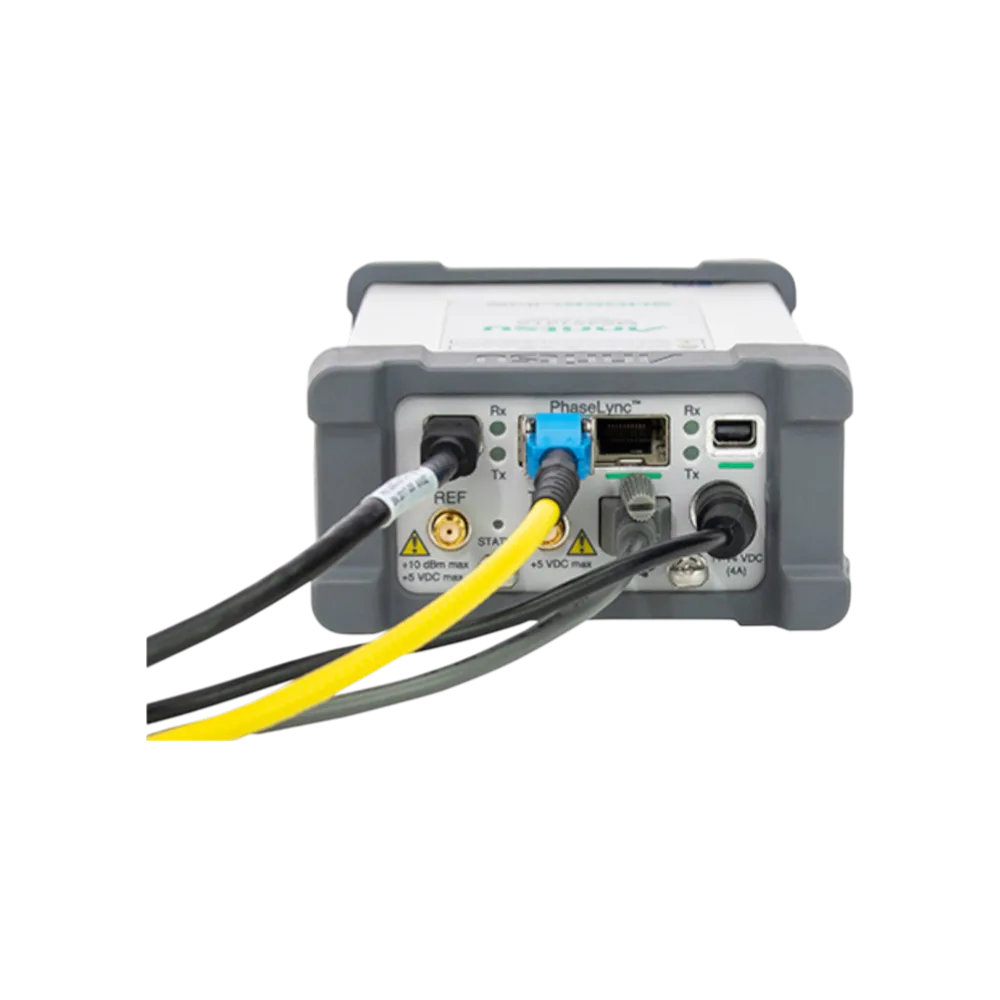

8 GHz, 2 port VNA system Enabled by PhaseLync
Article no.
ME7869A-010
- Frequency Max
- 8000 MHz
- Frequency min
- 1000000 Hz
- Dynamic Range
- 105 dB
- Ports
- 2
Price on request
The price depends on configuration and options. Tell us what you need and you get a quote within one working day.
- Personal offer from our team in Biel/Bienne
- Calibration & repair at our lab
Overview
Description
- 8000 MHz frequency max
- 1000000 Hz frequency min
- 105 dB dynamic range
- 2 ports
The ME7869A-010 is an 8 GHz, 2 port VNA system enabled by PhaseLync and manufactured by Anritsu. It operates within a frequency range from 1 MHz to 8 GHz, providing a dynamic range of 105 dB. This system features two ports, allowing for versatile measurement configurations. It is designed as a non-handheld device, suitable for stationary use in various testing environments. The integration of PhaseLync technology enhances its capabilities for precise vector network analysis. The device supports a wide frequency spectrum, making it applicable for a range of RF and microwave testing applications. Its specifications focus on delivering accurate and reliable measurements across its operational bandwidth.
Video
ME7869A-010
Technical data
Specifications
5- Frequency Max
- 8000 MHz
- Frequency min
- 1000000 Hz
- Dynamic Range
- 105 dB
- Ports
- 2
- Handheld
- No
