MS2089A-0704
Site Master Cable & Antenna Analyser 4GHz + Spectrum
Article no.
MS2089A-0704
- Frequency Max
- 4000 MHz
- Frequency min
- 9000 Hz
- Handheld
- Yes
- Analysis Bandwidth
- 40 MHz
Price on request
The price depends on configuration and options. Tell us what you need and you get a quote within one working day.
- Personal offer from our team in Biel/Bienne
- Calibration & repair at our lab
Overview
Description
- 4000 MHz frequency max
- 9000 Hz frequency min
- Handheld
- 40 MHz analysis bandwidth
- -167 dBm/Hz danl

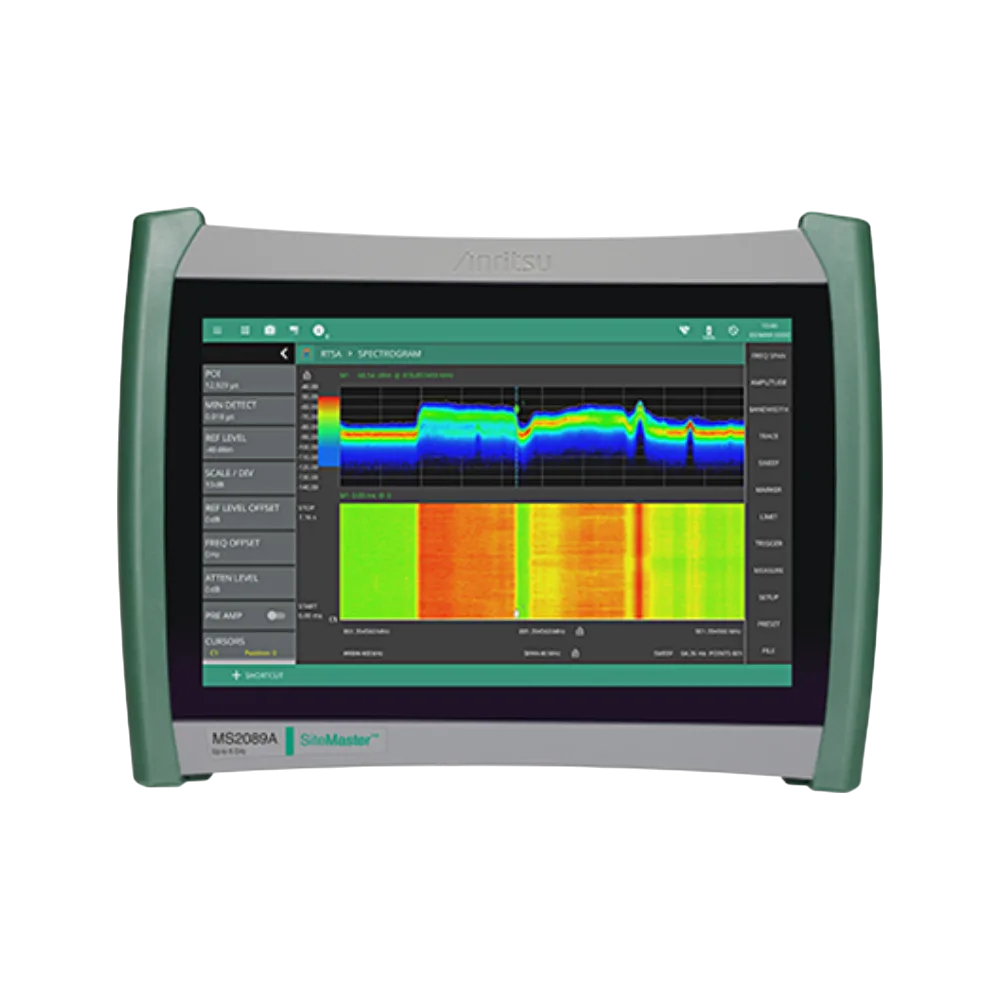

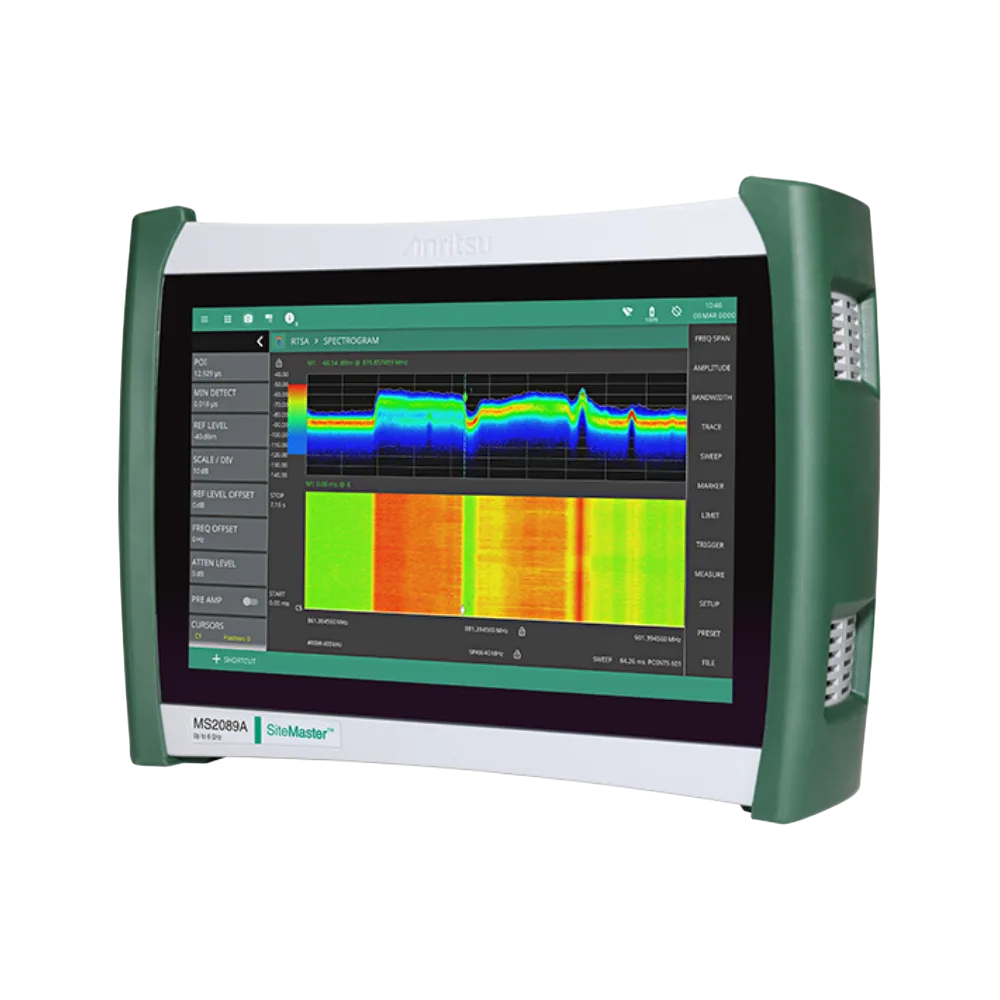

The MS2089A-0704 Site Master Cable & Antenna Analyser from Anritsu operates with a maximum frequency of 4000 MHz and a minimum frequency of 9000 Hz, providing a wide range for cable and antenna analysis. It features a phase noise level of -93 dBc/Hz, which contributes to its signal clarity during measurements. The device includes an analysis bandwidth of 40 MHz and a displayed average noise level (DANL) of -167 dBm/Hz, supporting detailed signal evaluation. This handheld analyser is equipped with real-time spectrum analysis (RTSA) capabilities, allowing for dynamic signal monitoring and troubleshooting. Its compact design facilitates field use, making it suitable for on-site testing and diagnostics. The combination of these specifications ensures that the MS2089A-0704 can effectively measure and analyze cable and antenna performance across a broad frequency spectrum.
Video
MS2089A-0704
Technical data
Specifications
6- Frequency Max
- 4000 MHz
- Frequency min
- 9000 Hz
- Handheld
- Yes
- Analysis Bandwidth
- 40 MHz
- DANL
- -167 dBm/Hz
- RTSA
- Yes
