MS46524B-020
ShockLine™ 4-Port VNA 20GHz
Article no.
MS46524B-020
- Frequency Max
- 20000 MHz
- Frequency min
- 50000 Hz
- Dynamic Range
- 140 dB
- Ports
- 4
Price on request
The price depends on configuration and options. Tell us what you need and you get a quote within one working day.
- Personal offer from our team in Biel/Bienne
- Calibration & repair at our lab
Overview
Description
- 20000 MHz frequency max
- 50000 Hz frequency min
- 140 dB dynamic range
- 4 ports

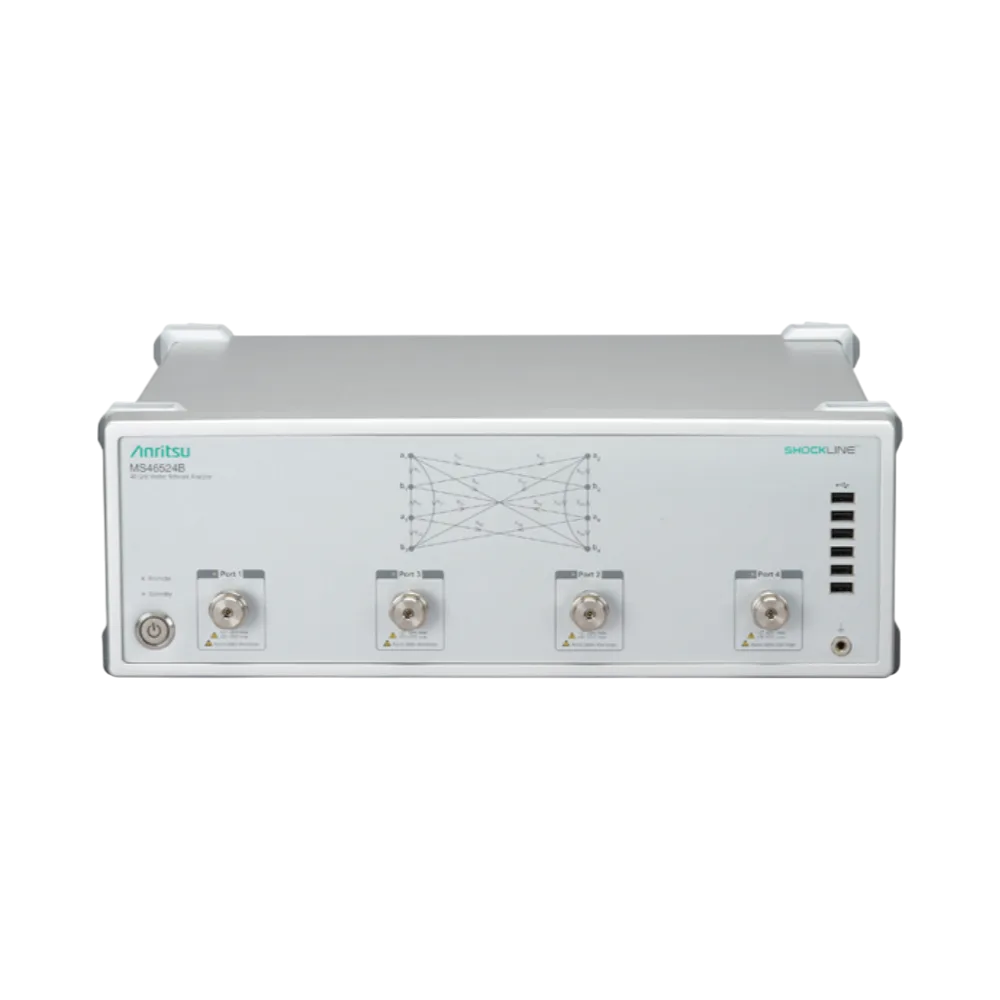

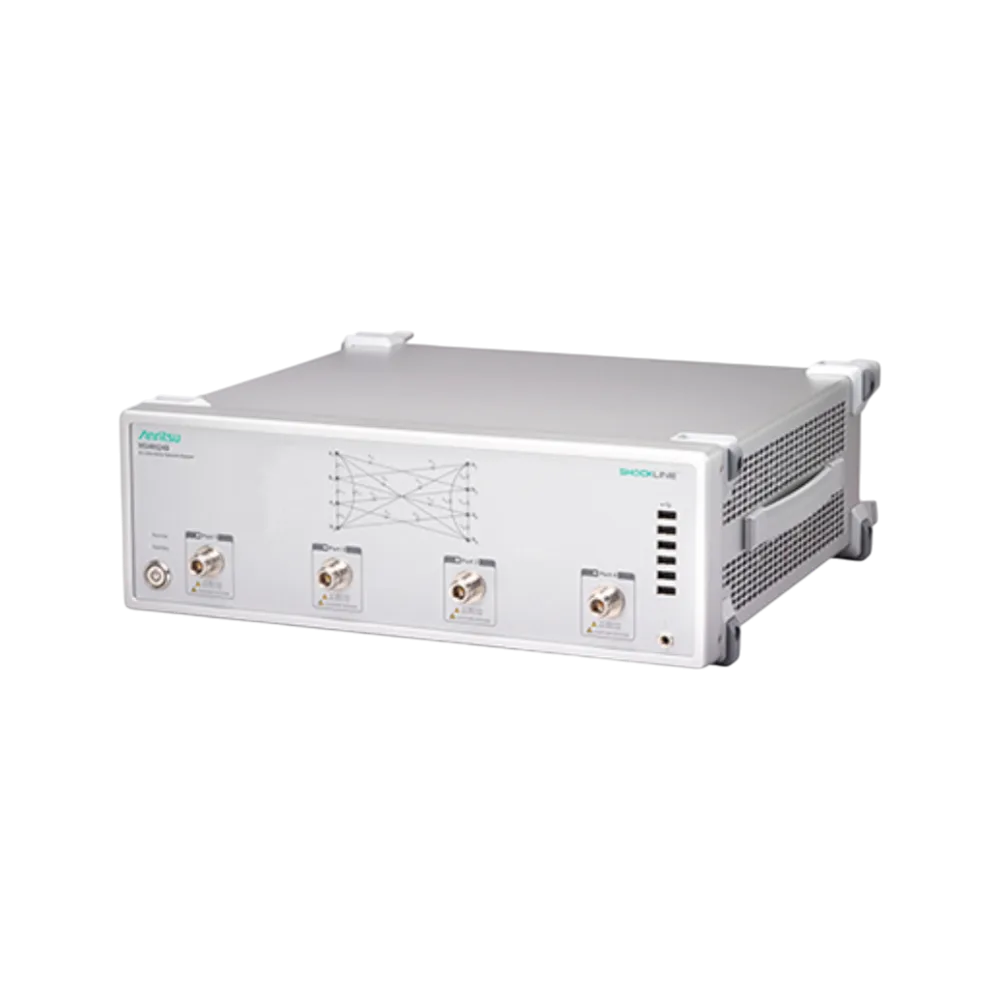

The Anritsu MS46524B-020 ShockLine™ 4-Port VNA operates with a frequency range from 50 kHz to 20 GHz, providing a dynamic range of 140 dB. This vector network analyzer features four ports, enabling comprehensive multi-port measurements. Designed for benchtop use, it is not handheld. The device supports high-frequency testing up to 20 GHz, making it suitable for a variety of RF and microwave applications. Its wide dynamic range allows for precise signal analysis across a broad spectrum. The ShockLine series is known for its robust performance in network analysis tasks. This model is part of Anritsu’s lineup of advanced test equipment aimed at detailed signal characterization.
Technical data
Specifications
5- Frequency Max
- 20000 MHz
- Frequency min
- 50000 Hz
- Dynamic Range
- 140 dB
- Ports
- 4
- Handheld
- No
