PG-1501
1 Channels Pulse Generator 400 ps edge time 50 Volts
Article no.
PG-1501
- Channels
- 1
- Frequency
- 200 MHz
- Amplitude
- 50 V
- Transition time min
- 0.4 ns
Price on request
The price depends on configuration and options. Tell us what you need and you get a quote within one working day.
- Personal offer from our team in Biel/Bienne
- Calibration & repair at our lab
Overview
Description
- 1 channels
- 200 MHz frequency
- 50 V amplitude
- 0.4 ns transition time min
- 1 ns pulse width min
The PG-1501 from Active Technologies is a pulse generator featuring a frequency of 200 MHz and an amplitude of 50 volts. It offers a minimum transition time of 0.4 nanoseconds and a minimum pulse width of 1 nanosecond. This device is designed to deliver precise pulse generation with an edge time of 400 picoseconds. The amplitude capability of 50 volts allows for a range of applications requiring high voltage pulses. The combination of these specifications makes the PG-1501 suitable for tasks that demand fast and accurate pulse generation. Its detailed parameters provide clear information on its operational limits and performance characteristics.

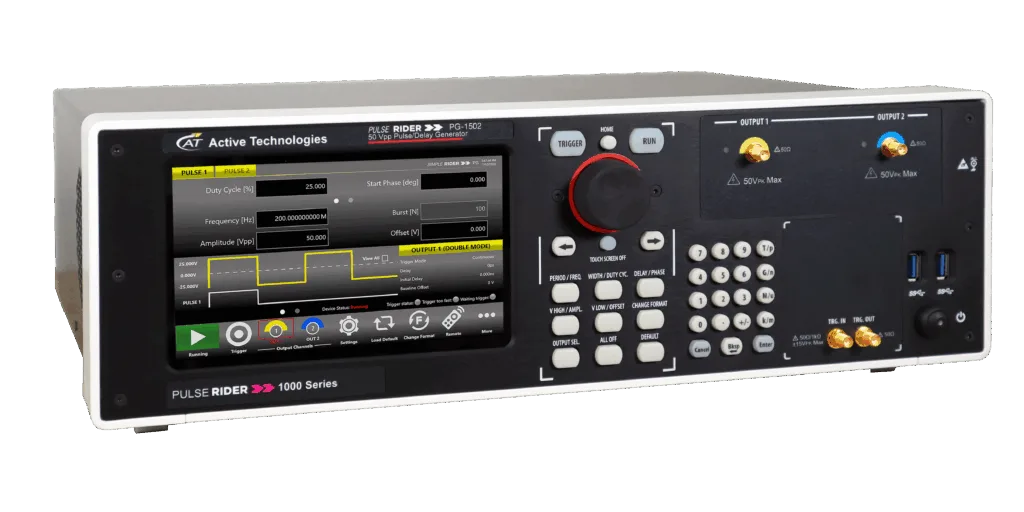

Video
PG-1501
Technical data
Specifications
5- Channels
- 1
- Frequency
- 200 MHz
- Amplitude
- 50 V
- Transition time min
- 0.4 ns
- Pulse Width min
- 1 ns
